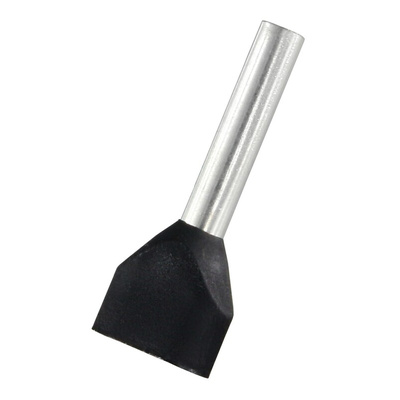

RS PRO Insulated Bootlace Ferrule, 12mm Pin Length, 2.6mm Pin Diameter, 2 x 1.5mm² Wire Size, Black

RS PRO Insulated Crimp Bootlace Ferrule, 12 mm Pin Length, 2.6 mm Pin Diameter, 2 x 1.5 mm² Wire Size, Black

This RS PRO crimp bootlace ferrule has enough space to allow you to fix two 1.5 mm wires in place, securing a reliable connection. The metal tube and black insulating collar crimp the stranded wires and compress them to minimise external contamination.
The terminal tube is made from copper to create a strong conductive core so you can be sure your connection will work. The tube surface is plated in a tin treatment to keep it smooth and help make it resistant to rust for a longer-lasting component.
The collar itself has been designed in a lightweight nylon material that's tough enough to resist friction and abrasion, keeping your wires protected. The ferrule is suitable for a wide range of wire applications including switching cabinets, function units and clamp connectors.

Features and Benefits

• Black colour
• Nylon insulation material
• Maximum wire size of 2 x 16 AWG (American Wire Gauge)
• Maximum wire size (mm²) of 2 x 1.5 mm²
• One entry
• Overall length of 19.5 mm
• Pin diameter of 2.6 mm
• Pin length of 12 mm

The RS PRO Insulated crimp bootlace ferrule twin cord end terminal has overall length of 19.5mm with 16AWG of wire size and black in colour.

Terminal material: Copper
Maximum Temperature Range: 105°C

Small Pack Size

Per Unit, RS stock no: 178-8742

Large Pack Size

RS stock no: 270-7666

RS PRO Datasheet
