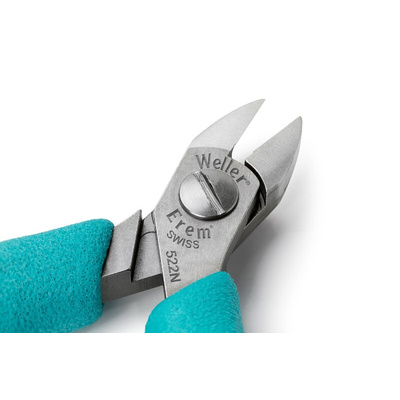

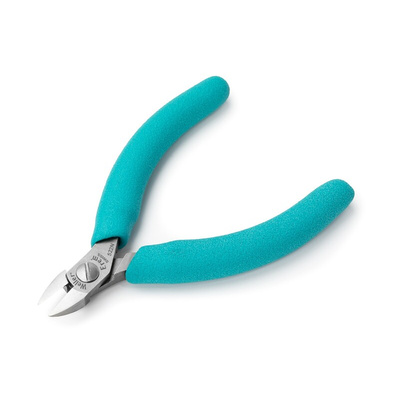

522N, Weller Erem 115 mm Side Cutters, Кабельные ножницы

Oval Head Side Cutters

The 522N is a tapered head side cutter which is the most commonly used head shape and is suitable for all cutting applications where easy access is given. The Series 500 cutter is manufactured from high grade tool steel and the cutting edges are hardened to Rockwell 63-65 HRc.
This robust cutter has a flush cut and offers the highest cutting capacity and can be used on:

• soft wire, copper and aluminium, tensile strength 250 MPa


• medium-hard wire, stainless steel wire, material 1.4301. tensile strength 800 MPa

Features and Benefits:

• Medium head size tapered head cutter


• Series 500 – non-reflecting surface and can be re-sharpened


• Flush cut


• ESD safe – can be used in areas where there may be a sudden flow of electrostatic discharge which can destroy sensitive electronic components


• Length: 115 mm


• Length of cutting edges: 12 mm


• Head width: 11 mm


• Head thickness: 6 mm


• Head length: 19 mm


• Max. cutting capability – medium hardness: Ø 1.0 mm


• Max. cutting capability – copper wire: Ø 1.6 mm


• Weight: 67 g

Applications:

Cable Cutters are tools designed with electricians in mind, but a reliable set of cable cutters should always be at hand. These tools are ideal for cutting and stripping wires of all shapes and sizes. Wire cutters feature ergonomic designs for comfort, confidence and safety of use. Speciality models are suitable for insulated wire cutting and use in Electrostatic Discharge (ESD) environments. Cable cutters are commonly used by:

• Electricians


• Gas engineers


• Telecommunication engineers


• Car mechanics


• DIY enthusiasts

FAQ:

What is the maximum cutting capacity?

The maximum cutting capacity for these cutters is 1.6 mm.
It is essential that you have the right wire cutter providing you with a clean cut through cable and wire. These wire cutters will cut cleanly and easily with the 1.6 mm cutting capacity. The cable and wire cutter are excellent for use on;

• Copper wire


• Aluminium wire


• Steel wire
