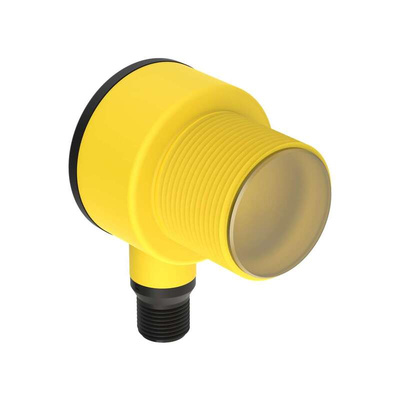

T30R-1515-LKIQ, Banner T30R Series Radar Level Sensor, NPN/PNP, Analog 4-20mA Output, Barrel M30, PBT Body, Датчик уровня

2708593
Номер производителя: T30R-1515-LKIQПроизводитель: Banner
Цена за шт.
405280.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The T30R is a long-range sensor that provides reliable detection and position feedback in extreme applications

•Reliable detection of high-dielectric targets (like metal or large amounts of water) and lower-dielectric materials (such as wood, rock, or organic material) in a wider range of applications
•Unaffected by rain, wind, snow, fog, steam, sunlight, and an operating temperature of -40 to 65° C
•Radar Configuration Software, IO-Link, remote teach input, and push buttons for flexible set-up and configuration
•Compact, IP67-rated housing for use in challenging environments (T30RW model features IP69K-rated housing)
•Pulse Pro output for direct integration with Banner lights; direct process feedback that only requires power; no controller needed
•Frequency Modulated Continuous Wave (FMCW) for detection of stationary and moving targets
•Crosstalk immunity, allowing for multiple sensors to be mounted in close proximity
•Depending on model, up to 25 m range to detect targets from farther away while maintaining detection as close as 150 mm
•Available in 15x15 degree and 45x45 degree beam patterns to solve a wide variety of applications

Техническая спецификация
pdfDatasheet - T30R-1515-LKIQ
