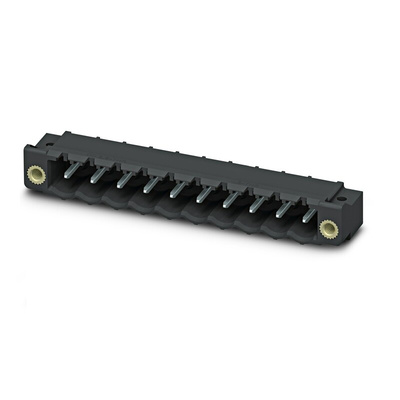

1792724, Phoenix Contact CCV Series Straight PCB Header, 12 Contact(s), 5.08mm Pitch, 1 Row(s)

CLASSIC COMBICON CC 2,5, CCV 2,5 & CCVA 2,5 5.08mm pitch vertical and right angle mounting single-level terminal block PCB shrouded through hole mount headers with male pins. These CLASSIC COMBICON CC & CCV 5.08mm pitch single-level terminal block headers have a 2.6mm standard pin length.
Part numbers prefixed with 19555, 19558 and 19559 are vertical mount with side panels (CCV 2,5 CCVA 2,5 - P26THR)
Part numbers prefixed with 17926, 17927 and 17928 have a threaded flange and a lock and release system enabling them to be used with other connectors with a lock and release or with a screw flange. (CC 2,5 - GF - LR - P26THR and CCV 2,5 - GF - LR - P26THR)
Stock number 804-5339 is a taped header and is supplied in taped packaging for automatic assembly.
For coding section see stock number 648-6882
For marker cards see stock numbers 804-0961, 437-3598 and 437-3605
For marker pen see stock number 101-2925

The Phoenix Contact PCB Connector well known connection principle allows worldwide use. Device design with one header for connectors with different connection technologies allows maximum flexibility.

Allows connection of two conductors
Automatic lock system prevents accidental disconnection

Datasheet - 1792724
