1658670-2, TE Connectivity, AMPLIMITE HDP-22 size 22 Male Crimp D-sub Connector Contact, Gold over Nickel Signal, 28 → 22, Контакты

AMPLIMITE Size 22 DF Crimp Snap-In Contacts for HDP-22 D-Sub Connectors

AMPLIMITE size 22 DF crimp snap-in contacts for HDP-22 d-sub connectors. These 22 DF crimp snap-in contacts are precision formed and accept a wire size range of 28-22 AWG (0.4 to 0.08mm²). The pin crimp contacts are made from brass and the socket contacts are made from phosphor bronze. The platings for these contacts are as follows:
Stock numbers 680-9692, 270-9838, 718-1207 and 314-8010 are duplex plated with 0.00076 gold
Stock numbers 798-1322 , 270-9850 and 314-8026 are duplex plated gold flash
For PRO-CRIMPER II hand tool see stock number 314-8032
For insertion/extraction tool see stock number 446-822

Male and female crimp contacts.
Will accept wire sizes 28 to 22 a.w.g. (0.08-0.4mm²).
Use crimp tool stock no. 314-8032 and insert/extraction tool stock no. 446-822.

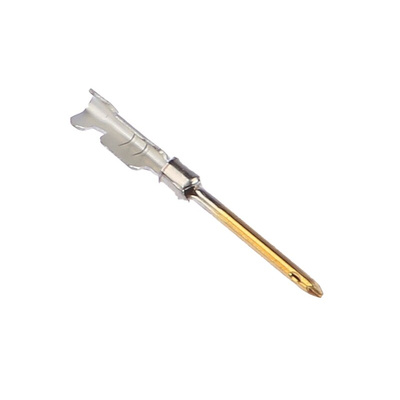

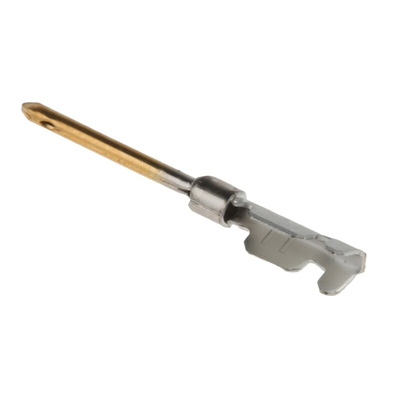

The TE Connectivity 1658670-2 is a pin contact from the HDP-22 series. It is designed for use with the AMPILITE range. This precision-formed crimp contact is made from nickel with tin and gold plating. It is designed to snap-fit into your chosen housing for easy assembly. The contact is then crimped to a wire with a size of 0.08-0.4mm² (28-22AWG).

• Contact size: 22
• 1.9A contact current rating
• Pin diameter: 0.76 mm

Versions Available:
(170-9415) – bag of 1000
(270-9838) – pack of 10

TE Connectivity AMPLIMITE D-Subminiature Connectors
