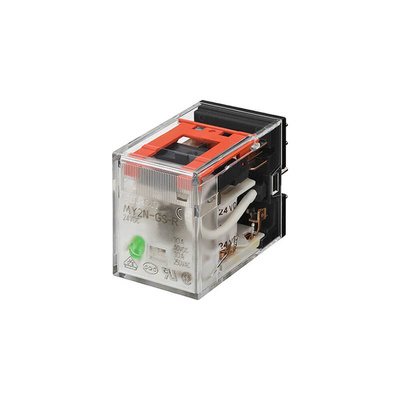

MY2-GS-R AC12, Omron Plug In Power Relay, 12V ac Coil, 10A Switching Current, DPDT

OMRON Power Relay, 500,000 Switching Cycles, 46Ω Coil Resistance - MY Series - MY2-GS-R AC12

When you need to control high-power circuits using a low-power signal, reach for this power relay from OMRON to lighten your load. With a maximum switching voltage of 220V DC and 250V AC, it's just the thing for managing heavy-duty motors and industrial appliances. Compact dimensions of 28 (L) x 21.5 (W) x 36mm (H) mean the miniature unit slips seamlessly into lighting and heating systems where space is limited. It stands up to harsh conditions too, thanks to a broad operating temperature range between -55°C and +70°C.

Features & Benefits

• Printing on coil tape shows operating specifications to prevent errors during use
• Plug-in design saves wiring time with direct installation into compatible sockets
• Comes with 2 poles to control a pair of circuits at once
• Highly conductive silver contacts resist corrosion to support a long product life

Applications

• Pharmaceutical manufacturing
• Industrial process control
• Transportation industry

How long will this power relay last?

The unit is built to last for approximately 500,000 mechanical operations, so you can trust it to perform over the long-term.

Is this a latching or non-latching relay?

This is a non-latching type, which means it returns to its original position when power is turned off.

Datasheet - MY2-GS-R AC12

Brochure - Industrial Relays
