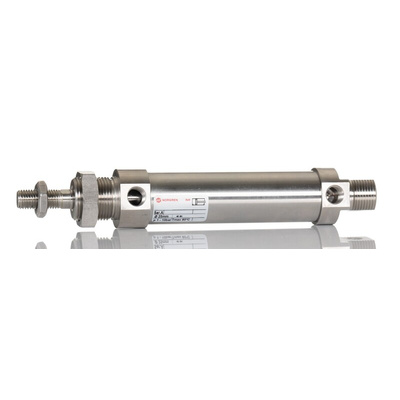

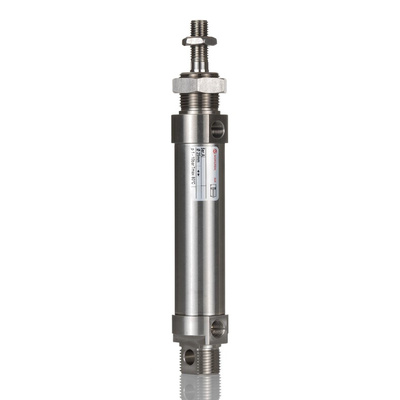

Norgren Double Acting Cylinder - KM/8025/M/10, 25mm Bore, 10mm Stroke, KM/8000/M Series, Double Acting

IMI Norgren Double-Acting Cylinder, G1/8 Port Thread, 1 to 10 Bar Operating Pressure Range - KM/8000/M Series - KM/8025/M/10

Get your workpieces moving in the right direction with this double-acting cylinder from IMI Norgren. As it has an open port at each end, its piston extends and retracts using air, so you get precise stroke control. By delivering forces up to 294N at 6 bar of pressure, this unit carries heavy loads through the system without breaking a sweat. Finding compatible air supply connectors is no issue, thanks to its industry-standard G1/8-thread port. Don't worry about wear and tear, as buffer cushioning is on hand to minimise impact forces and cut the risk of damage.

Features & Benefits

• Short stroke length of 10mm for precise positioning
• Stainless steel casing resists corrosion, staying strong in damp environments
• Narrow bore diameter of 25mm, so it slots easily into busy setups
• Works with clean and lubricated compressed air for wide compatibility
• Airtight NBR seals guard against pressure loss and keep contaminants out

Applications

• Material handling
• Industrial automation
• Metalworking facilities

Can I track the position of the piston?

Yes. This unit's magnetic rod works with a proximity switch (218-0620), making it easy to track its position from your control device.
