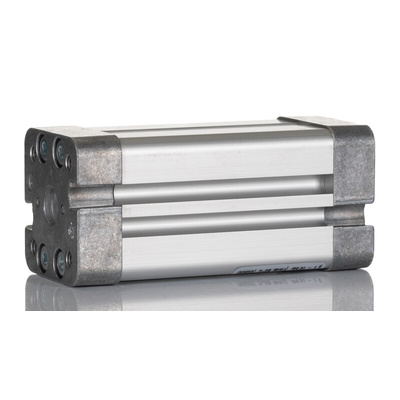

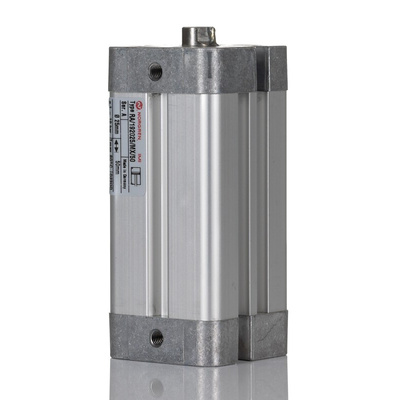

Norgren Pneumatic Compact Cylinder - RA/192025/MX/50, 25mm Bore, 50mm Stroke, RA/192000/M Series, Double Acting

IMI Norgren Pneumatic Compact Cylinder, Magnetic Piston, M5 Port Thread - RA/192000/M Series - RA/192025/MX/50

Keen to take close control of your material handling application? Add this pneumatic compact cylinder from IMI Norgren to your setup. The double-acting device uses compressed air to drive its piston in both directions to enable precision adjustments. As the built-in magnetic rod is compatible with a proximity switch (363-3316), you can set it up to signal its stroke position to a controller for handy remote monitoring. Linking the product to a supply is no trouble thanks to its standard M5-thread port. Don't worry about potential contaminants, as NBR seals stand guard to keep pesky dust and moisture out.

Features & Benefits

• Buffer cushioning reduces impact forces, preventing damage and noise
• Applies up to 294N at 6 bar pressures, easily moving large loads
• Air consumption between 0.028 and 0.035l/cm per stroke, so it's highly efficient
• Performs in temperatures between -5°C and +80°C to work reliably in tough conditions

Applications

• Manufacturing facilities
• Woodworking machinery
• Logistics industry
• Pharmaceutical plants

How do I fit a proximity switch to this cylinder?

The unit has side slots that provide a convenient place to mount a sensor flush with the cylinder's barrel. This ensures a compact positioning setup.

Datasheet - RA/192025/MX/50
