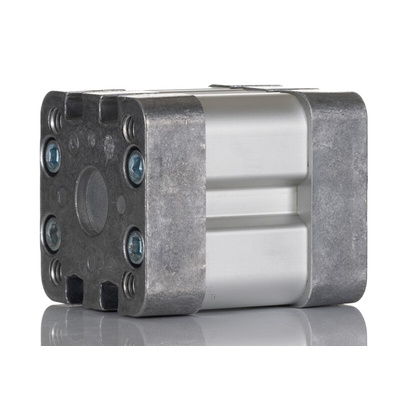

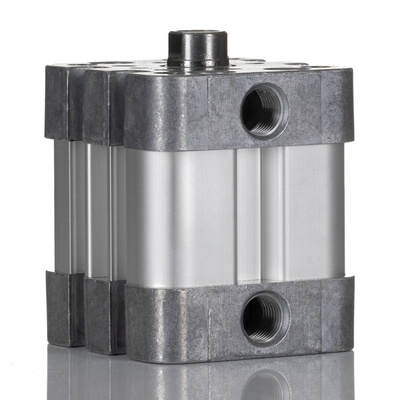

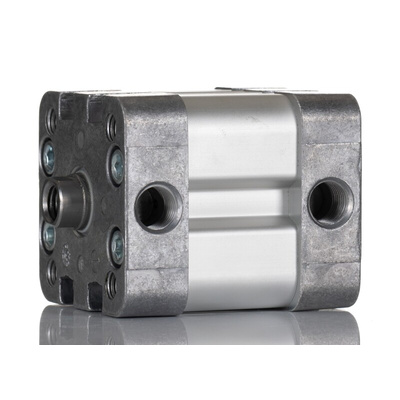

Norgren Pneumatic Compact Cylinder - RA/192032/MX/15, 32mm Bore, 15mm Stroke, RA/192000/M Series, Double Acting

IMI Norgren Pneumatic Compact Cylinder, G1/8 Port Size, 0.29kg Weight - RA/192000/M Series - RA/192032/MX/15

Need a device with the muscle to shift your workpieces in a linear direction? Add this pneumatic compact cylinder from IMI Norgren to your setup. Its short 15mm stroke is ideal for smaller-scale clamping, positioning and ejecting jobs. The assembly has a double-acting design, which means that airflow is used to push and pull the piston, giving you precise control over movements. As the barrel is made from anodised aluminium, it has the strength to withstand harsh conditions over the long term. The piston rod is just as robust, thanks to its stainless steel construction.

Features & Benefits

• Operating pressure between 1 and 10 bar for versatility
• NBR piston seals and O-rings resist corrosion to provide optimal long-term performance
• Delivers a theoretical force of 482N, suitable for demanding tasks
• 32mm diameter, so it fits into tight spaces

Applications

• Assembly lines
• Industrial manufacturing
• Factory automation
• Automotive industry

What type of media can this unit handle?

This pneumatic compact cylinder is a versatile option as it's compatible with filtered, non-lubricated and lubricated compressed air. In temperatures below +2°C, you'll need to ensure the supply is dry enough to prevent ice formation.

Datasheet - RA/192032/MX/15
