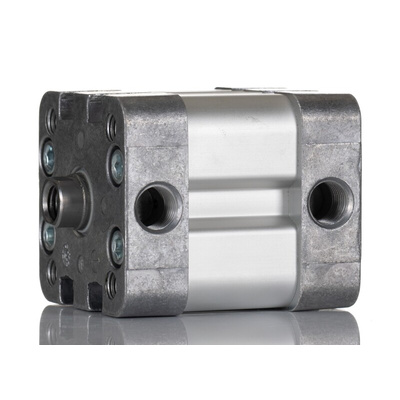

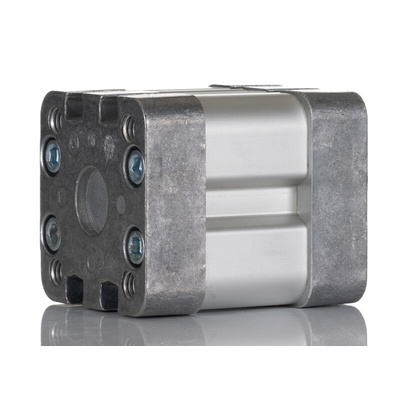

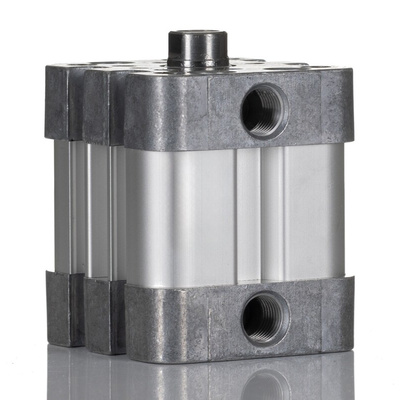

Norgren Pneumatic Compact Cylinder - RA/192032/MX/25, 32mm Bore, 25mm Stroke, RA/192000/M Series, Double Acting

IMI Norgren Pneumatic Compact Cylinder, 51mm Length, G1/8 Port Size - RA/192000/M Series - RA/192032/MX/25

Choose this pneumatic compact cylinder from IMI Norgren for positioning or clamping jobs in tight setups. It moves loads from A to B in a linear fashion over short distances, thanks to its 25mm stroke. Delivering a theoretical force of 482N, it's a practical option for shifting heavy items. As its operating pressure range is between 1 and 10 bar, this device is right at home in low-pressure systems. The double-action design uses compressed air to push the piston back and forth, which gives you complete control over push and pull motion.

Features & Benefits

• Wide compatibility with lubricated, non-lubricated and filtered compressed air, so it's versatile
• Anodised aluminium barrel resists impacts, abrasion and corrosion for a long service life
• NBR seals maintain system pressure and keep industrial contaminants out
• Integral buffer cushioning absorbs impacts to minimise strain

Applications

• Processing and packaging lines
• Medical equipment
• Automotive industry

Can I use this product in harsh industrial conditions?

Yes. This pneumatic compact cylinder is a good fit for challenging envrionements as it performs reliably in temperatures between -5°C and +80°C.

Datasheet - RA/192032/MX/25
