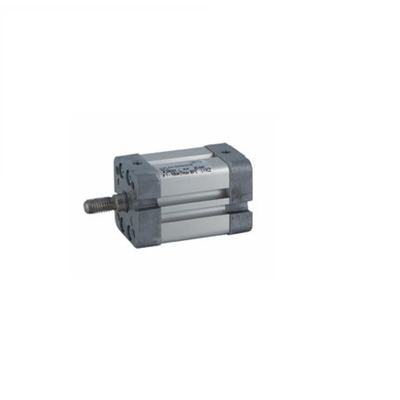

Norgren Pneumatic Compact Cylinder - RA/192080/M/80, 80mm Bore, 80mm Stroke, RA/192000/M Series, Double Acting

IMI Norgren Pneumatic Compact Cylinder, Magnetic, 3016N Typical Force Rating - ISO Compact Series - RA/192080/M/80

Take charge of your positioning process with this IMI Norgren pneumatic compact cylinder. With its double-acting function, it drives pushing and pulling movements using air to deliver precise stroke control. As the device achieves forces of up to 3016N at 6 bar of pressure, it makes light work of moving heavy objects. Hooking the unit up to air supplies is a breeze thanks to its standardised G1/8-thread port. Damp environments are no match for this cylinder, which has corrosion-resistant aluminium housing, meaning there's no risk of rust contamination in your media.

Features & Benefits

• Magnetic piston links with a proximity switch (218-0616) to provide handy status monitoring
• Maximum air consumption at 6 bar of just 0.35L/cm ensures efficient supply usage
• Stroke length of 80mm makes it simple to slot into compact systems
• Handles temperatures between -5°C and +80°C for reliable performance in harsh conditions

Applications

• Chemical processing
• Material handling
• Mining equipment
• Automotive industry

Does this device come with cushioning?

Yes, this unit has integral buffer cushioning that dampens impact forces to reduce the risk of damage.

What air supplies can I use this cylinder with?

This product supports clean, lubricated and filtered compressed air, so it's a versatile choice.

Datasheet - RA/192080/M/80
