RS PRO Type K Thermocouple, -75°C → +250°C

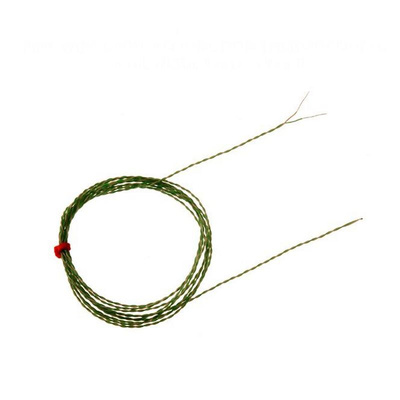

RS PRO Type K Thermocouple

This RS PRO range of Type J, K and T fast response welded exposed junction thermocouples have been designed with the highest quality and versatility in mind and feature fine wire temperature sensors and insulated twin-twisted 1/0.2 mm lead. These thermocouples have an exposed welded junction which enables them to operate with a fast response time and a Class 1 tolerance for optimum performance, offering the quality you would expect from RS PRO.

Features and Benefits

• IEC-584-3 class 1 tolerance for optimum accuracy


• Class 1 cable specification with a bare tail’s termination


• Exposed welded junction for fast response


• Durable Teflon PTFE insulation for resistance to oils, acids and fluids and good mechanical strength and flexibility


Temperature ranges from -75 to +250°C

Applications

These RS PRO type K, J and T thermocouple temperature sensors are useful in a wide range of temperature monitoring applications and environments, particularly in test and development applications including but not limited to:

Test and measurement

Temperature mapping

OEM applications

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
