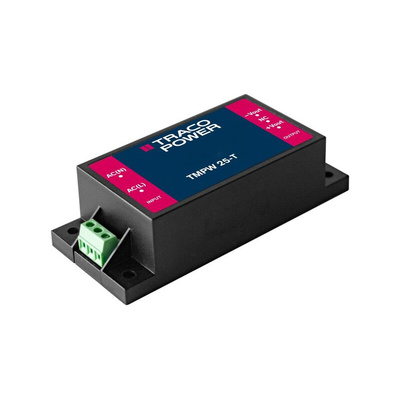

TRACOPOWER AC-DC Power Supply, TMPW 25-105-T, 5.1V dc, 3.922A, 20W, 1 Output, 90 → 305V ac Input Voltage

The TRACOPOWER TMPW 25 is a 25 Watt AC/DC series compact chassis mount power module in 3.48 x 1.50 package with an extended input range of 90-305 VAC and is suitable for industrial and household/building technology applications and comes in a compact encapsulated plastic case. Through the increased voltage level, the drawn current from the load is effectively reduced, which allows for an overall more compact and lightweight design approach. It offer an I/O-isolation voltage of 4000 VAC, a high temperature range of -40 to +70°C and are prepared for protection class II applications.

Certified according to EN 60335-1 an IEC/EN/UL 62368-1
No load input power <0.1W (acc. ErP directive)
Internal EN 55032 class B filter
Screw terminal
RoHS compliance
REACH declaration

Datasheet - TMPW 25-105-T
