RS PRO Green Pilot Light, 24V ac/dc

RS PRO Panel Mount Green LED Indicator Light, 16 mm Cutout, IP40, Round, 24 V AC/DC

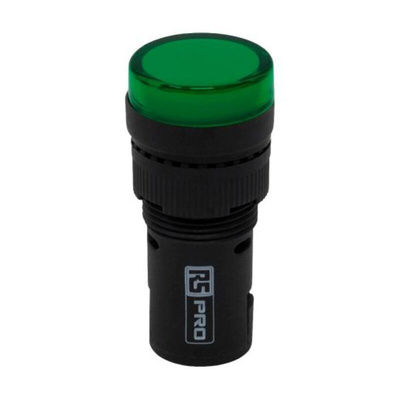

These round green LED pilot lights from the RS PRO range let you quickly and easily check the operational status of electrical components or systems.

Featuring multi-chip technology, they're brighter than standard incandescent bulbs of the same wattage. A brightness of ≥60 cd/m³ means they're easy to see, even in low light conditions. They'll last for around 30,000 hours or three and a half years, and their super-compact 16 mm cutout design saves space without sacrificing power or reliability. Panel mounting means they can be installed on most surfaces, while captive screw terminals ensure connecting wires is simple.

IP40 rated, each pilot light is protected against damage from tools and wires over 1 mm. You can use them to monitor a variety of electrical systems, from aircraft instrument panels to car dashboards and train doors.

Features and Benefits

• Green pilot lights
• IP40 rated for protection against tools and wires over 1 mm
• LED lamp
• Cutout diameter of 16 mm
• Minimum operating temperature of -25°C
• Maximum operating temperature of 55°C
• Voltage rating of 24 V AC/DC
• Current rating of 20 mA
• Round-shaped
• Screw terminals
• Panel mounting

Small Pack Size

Per Unit, RS stock no: 909-2433

Large Pack Size

Pack Quantity of 5, RS stock no: 271-7475

RS PRO Datasheet
