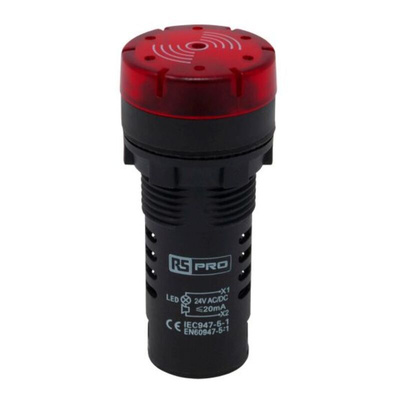

RS PRO, Panel Mount Red LED Pilot Light, 24V ac/dc

RS PRO Panel Mount Red LED Indicator Light Complete With Sounder, 22 mm Cutout, IP30, Round, 24 V AC/DC

These red LED pilot lights combine a flashing light with a sounder that produces a pulsing audio signal for use in alarm circuits. The 80 dB audio signal can be easily heard from up to 16 metres away.

With multi-chip technology, they produce an even glow at a brightness of ≥60 cd/m³. Not only are they brighter than standard incandescent bulbs, but they're also energy-efficient and will last for up to three and a half years or 30,000 hours. These pilot lights have an IP30 rating, so they're protected from small tools and wires larger than 2.5 mm. With captive screw-clamp terminals, wires can be connected without the need to solder. Panel mounting means they can be installed on almost any surface and combined with new or existing alarm circuits.

A pilot light complete with sounder is useful for any system requiring fail-safe indication. You'll find them on automatic equipment, condition panels and even telephones.

Features and Benefits

• Red pilot lights with sounder for use with alarm circuits
• IP30 rated so they are protected against tools and wires over 2.5 mm
• LED lamp
• Cutout diameter of 22 mm
• Minimum operating temperature of -25°C
• Maximum operating temperature of 55°C
• Voltage rating of 24 V AC/DC
• Current rating of 20 mA
• Round-shaped
• Screw terminals
• Panel mounting

Small Pack Size

Per Unit, RS stock no: 909-2556

Large Pack Size

Pack Quantity of 5, RS stock no: 271-7485

RS PRO Datasheet
