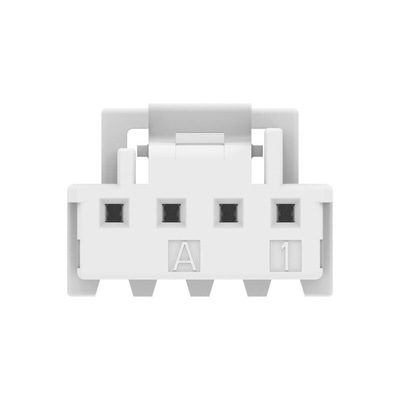

1-2232979-4, TE Connectivity, 1-2232979 Plug Connector Housing, 2mm Pitch, 4 Way, 1 Row Vertical

The TE Connectivity SGI2.0 plug assembly is miniaturized, reliable connector that provide cost saving opportunities. The ideal solution to help save space on printed circuit boards (PCB) with added reliability through our optional terminal position assurance (TPA) accessories. The Use of IDC technology enables mass termination to provide higher automatic assembly efficiency and offers strain relief features and VDE certifications.

Normal insertion force type
Not Sealable
Vertical orientation
Connector & keying code A
Insulation Displacement (IDC)
Housing material nylon 6/6
UL flammability rating UL 94V-0

Datasheet - 1-2232979-4

Schematic - 1-2232979-4
