102110898, Beagleboard.org BeagleV®-Fire

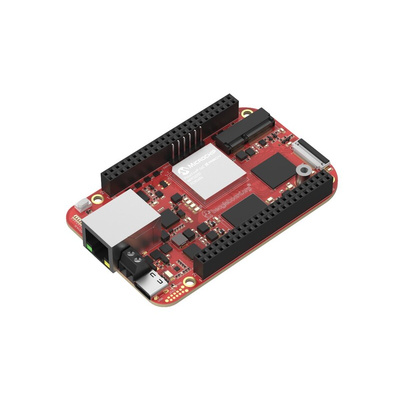

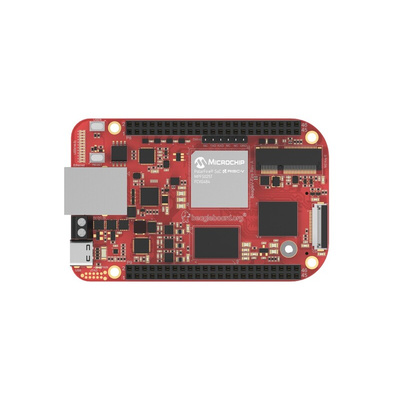

Introducing the BeagleV®-Fire, a cutting-edge Single Board Computer (SBC) developed by BeagleBoard.org. This remarkable addition to the BeagleBoard.org BeagleV® product family is powered by Microchip's PolarFire® MPFS025T FCVG484E 5x core RISC-V System on Chip (SoC) featuring FPGA fabric. Designed to unlock the full potential of RISC-V and FPGA technologies for developers, enthusiasts, and the open-source community.

The BeagleV®-Fire represents the second iteration in the BeagleV® series of SBCs from BeagleBoard.org. Leveraging the formidable RISC-V instruction set architecture (ISA) and its adaptable FPGA fabric, the BeagleV®-Fire SBC presents a wealth of opportunities for developers, hobbyists, and researchers to immerse themselves in the world of RISC-V technology.

With its compact form factor, high-performance capabilities, and a wide range of versatile I/O interfaces, the BeagleV®-Fire SBC is ideally suited for an array of applications, including Internet of Things (IoT) devices, robotics, artificial intelligence, and embedded systems.

Key features of BeagleV®-Fire:

RISC-V CPU: 4x 64-bit RV64GC application cores & 1x 64-bit RV64IMAC monitor/boot core with performance score of 3.125 CoreMarks/MHz & 1.714 DMIPS/MHz.
FPGA: 23K logic elements (4-input LUT + DFF), 68 Math blocks (18x18 MACC), and 4 SerDes lanes of 12.7 Gbps.
Memory: Kingston 16GB eMMC, 2GB LPDDR4 RAM, and microSD card socket.
Networking: Gigabit ethernet, M.2 Key E, support 2.4GHz/5GHz WiFi module.
Connectivity: USB Type-C and Serial debug.
Add-on board expansion: High speed SYZYGY interface, 22pin CSI connector, BeagleBone compatible 92-pin cape header pins.
Open-Source Design: BeagleV®-Fire follows the principles of open-source hardware, allowing users to access and modify the board's design and firmware, promoting collaboration and innovation within the RISC-V community.
Linux-Compatible: BeagleV®-Fire comes with Ubuntu preinstalled out of the box.
Operating Temperature: 0℃ ∼ 70℃
