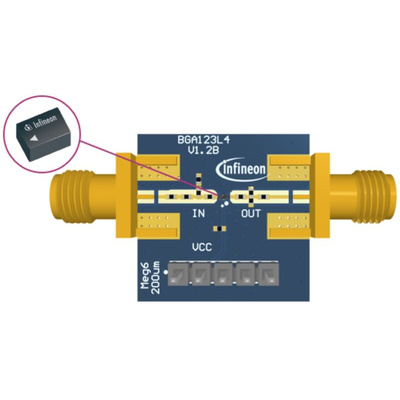

Ultra low power GNSS LNA for wearables and mobile cellular IoT applications (Evalbaord)
The BGA123L4 is designed to enhance GNSS signal sensitivity for band L2/L5 especially in wearables and mobile cellular IoT applications. With the very good performance it ensures high system sensitivity. The ultra low power consumption of 1.5mW preserves valuable battery power, ideal for small battery powered GNSS devices.
Summary of Features
•Operating frequencies: 1550 - 1615 MHz
•Ultra low current consumption: 1.1 mA
•Wide supply voltage range: 1.1 V to 3.6 V
•High insertion power gain: 18.2 dB
•Low noise figure: 0.75 dB
•2 kV HBM ESD protection (including AI pin)
•Ultra small TSLP-4-11 leadless package (footprint: 0.7 x 0.7 x 0.31 mm3)
•RF output internally matched to 50 Ohm
•Only one external SMD component necessary
•Pb-free (RoHS complaint) package
Potential Applications
•Wearables
Техническая спецификация
