EVALHB2EDL803XG4CTOBO1, Infineon Half-Bridge Buck Converter Evaluation Board Using the Eicedriver 2EDL803x Motor Driver for Gate Driver IC for

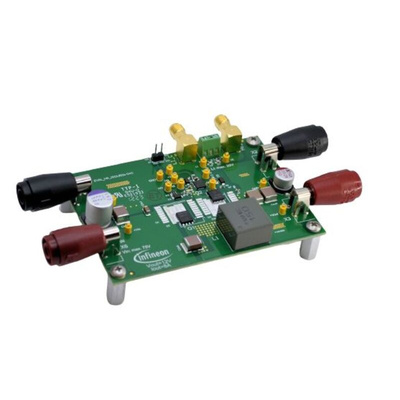

Evaluation board for EiceDRIVER™ 2EDL803x-G4B

This board features the EiceDRIVER™ 2EDL8034-G4B, a junction isolated high-side and low side gate driver IC. The board has easy access to every pin of the driver via test pins for probing various characteristics of the IC like propagation delay, rise time, fall time, boot diode characteristics etc. The open loop buck topology showcases the half-bridge driving capability of the IC with flexibility to have user defined gate drive waveforms along with the option to evaluate wide variety of MOSFETs available across Infineon portfolio in various footprints, thus helping to reduce the design and validation time.

Summary of Features

•Evaluation board for EiceDRIVER™ gate driver IC 2EDL8033-G4B and 2EDL8034-G4B

•Independent low-side and high-side gate drives

•Wide input voltage range from 36 V to 75 V

•Supports evaluation of basic buck topology

Benefits

•SMA connectors for easy connection to waveform generator

•Large buck inductor to evaluate wide range of frequencies and duty cycle

•Various MOSFET package selection

•Easy access to each pins of the driver

Potential Applications

•Telecom/ Datacom half- and full-bridge convereters

•DC Motor drives

•Class D amplifiers

List of components

•2EDL8034-G4B

•BSC040N10NS5
