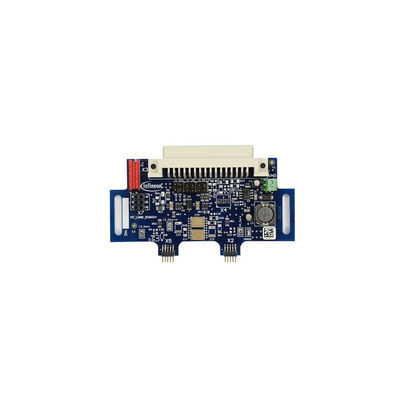

Kit master motherboard for low voltage drives scalable power demoboard
The master motherboard serves a supporting board for the LVD scalable power demoboard platform. It provides the system with the gate drivers of the corresponding phase for driving the MOSFETs of the power boards. The board also provides the interconnection and power supply to the XMC™ drive card control board (KIT_XMC4400_DC_V1).
Summary of features
•Gate resistors on FR4 for ease of rework
•Additional ceramic capacitor connected to the DC bus
•Optional branch out connection for paralleling of MOSFETs
List of components
•Gate driver IC (1EDN8550B)
•DC-DC converter (IFX91041EJV50)
•P-channel power MOSFET (BSZ086P03NS3 G)
Target applications
•Prototyping forklifts and LEVs(low speed cars, e-scooters, 3-wheelers, golf cars)
•BPA BLDC motor drives
•Cordless power tools
Variations of the master mother boards
•KIT_LGMB_BOM003
Техническая спецификация
Datasheet - KITLGMBBOM004TOBO1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
