KITLGPWRBOM009TOBO1, Infineon Low Voltage Drives Scalable Power Demonstartion Board MOSFET Gate Driver for Demonstration Board for Fast

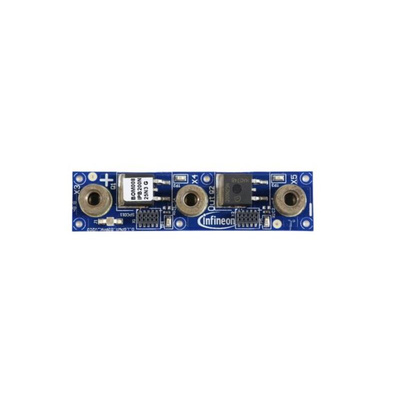

Modular half-bridge power PCB with OptiMOS™ Fast Diode (FD) power MOSFETs, for individual or paralleled MOSFET applications.

This kit power board module utilizing the OptiMOS™ Fast Diode (FD) 200 V MOSFET in D²PAK represents the power building block of the LVD scalable power demo board platform. It serves as a single half-bridge with power and gate drive interconnections, enabling easy buildup of any half-bridge based power topology.

Variations of the power board employing Infineon’s power MOSFET family OptiMOS™ in the D²PAK, D²PAK-7 and the TO-Leadless packages demonstrate power MOSFET performance in terms of parallelization and thermal behavior.

Variations of the power boards:

•KIT_LGPWR_BOM003 (80 V TO-Leadless)

•KIT_LGPWR_BOM004 (60 V TO-Leadless)

•KIT_LGPWR_BOM005 (100 V D2PAK 7-pin)

•KIT_LGPWR_BOM006 (150 V D2PAK 7-pin)

•KIT_LGPWR_BOM007 (200 V D2PAK)

•KIT_LGPWR_BOM008 (250 V D²PAK)

•KIT_LGPWR_BOM010 (100 V TO-Leadless)

•KIT_LGPWR_BOM013 (100 V TOLG)

•KIT_LGPWR_BOM015 (200 V D2PAK)

Summary of features

•IMS PCB for increased cooling

•SMD power terminals with M5 thread

•Onboard test point terminals

List of components

•OptiMOS™ Fast Diode (FD) 200 V (IPB117N20NFD)

Target applications

•Drives

•eMobility

•Industrial drives

•Low-speed eVehicles

•Motor control & drives

•Cordless Power tools

Datasheet - KITLGPWRBOM009TOBO1
