KITLGPWRBOM013TOBO1, Infineon Low Voltage Drives Scalable Power Demonstartion Board MOSFET Gate Driver for Power MOSFET for MOSFET

Kit power board for low voltage drives scalable power demoboard using IPTG014N10NM5

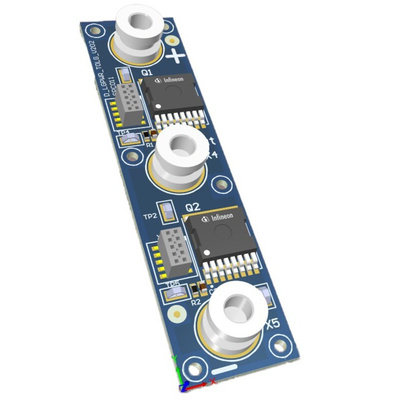

This kit power board module with 100 V OptiMOS™ MOSFET in TOLG package represents the power building block of the LVD scalable power demo board platform. The power board represents the basic building block. It serves as a single half-bridge with power and gate drive interconnections, enabling easy buildup of any half-bridge based power topology.

This power board is equipped with the OptiMOS™ power MOSFET IPTG014N10NM5 which comes in the improved TO-Leaded package with gullwing leads. With a compatible footprint to TO-Leadless, TOLG allows excellent electrical performance compared to D2PAK 7-pin with ∼60 percent board space reduction.

Variations of the power board employing Infineon’s power MOSFET family OptiMOS™ in the D2PAK, D2PAK-7 and the TO-Leadless packages demonstrate power MOSFET performance in terms of parallelization and thermal behavior.

Variations of the power boards:

•KIT_LGPWR_BOM003 (80 V TO-Leadless)

•KIT_LGPWR_BOM004 (60 V TO-Leadless)

•KIT_LGPWR_BOM005 (100 V TO-Leadless)

•KIT_LGPWR_BOM006 (150 V D2PAK 7-pin)

•KIT_LGPWR_BOM007 (200 V D2PAK)

•KIT_LGPWR_BOM008 (250 V D2PAK)

•KIT_LGPWR_BOM009 (200 V D2PAK)

•KIT_LGPWR_BOM010 (100 V TO-Leadless)

•KIT_LGPWR_BOM015 (200 V D2PAK)

Summary of Features

•IMS PCB for increased cooling

•SMD power terminals with M5 thread

•Onboard test point terminals

Benefits

•High performance capability

•High system reliability

•High efficiency and lower EMI

Potential Applications

•Prototyping forklifts and LEVs (low speed cars, e-scooters, 3-wheelers, golf cars)

•BPA BLDC Motor Drives

•Cordless Power tools

List of Components

•OptiMOS™ 100 V power MOSFET TOLG (IPTG014N10NM5)

Datasheet - KITLGPWRBOM013TOBO1
