REFMHA50WIMI111TTOBO1, Infineon IMOTION Fan Driver Reference Design Kit 3 Phase Motor Drive for Gate Driver for Motor

Reference board for efficient fan control powered by iMOTION™ IPM IMI111T-026H

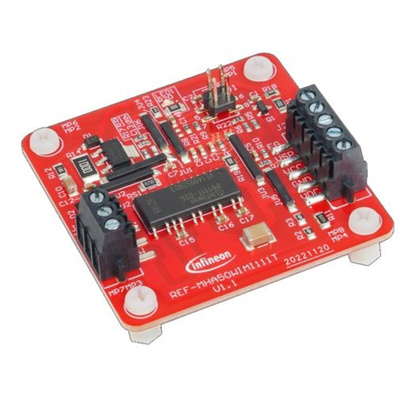

REF-MHA50WIMI111T is a complete reference design board targeted for fan drives. The featured IMI111T-026H device is part of the iMOTION™ IMI111T series, offering full 3-phase inverter functionality including motor controller, 3-phase gate driver and IGBT-based power stage in a compact DSO package.

The setup and operation of the motor control system is supported by the respective iMOTION™ tools:

The iMOTION™ Solution Designer provides system configuration, device setup as well as final tuning and monitoring. The IMI111T-026H Motion Control Engine (MCE) software package, containing the latest firmware image, is available within the Solution Designer.

The IMI111T-026H mounted on the board has been pre-programmed with the MCE firmware version that was recent at the time of board manufacturing. It is recommended to verify the version and performs an update to the latest available revision. New firmware releases are made available as SD packs for the iMOTION™ Solution Designer.

Get your motor running in less than 1 hour! REF-MHA50WIMI111T enables rapid prototyping of various inverterized motor control systems, for example fans, pumps and compressors.

Summary of Features

•Field-proven advanced Motion Control Engine (MCE)

•Single-shunt sensorless field oriented control (FOC)

•Scripting engine for additional flexibility

•600 V / 2 A IGBT power stage

•Low cost single layer PCB design

•Integrated protection features

Benefits

•Reference for low cost and small footprint inverterized drive

•Fast time to market – No coding required for motor control functions

•Easy motor parametrization and tuning using iMOTION™ Solution Designer

•Range of functionally equivalent iMOTION™ IPM Starter Kits with different power and/or voltage ratings

Applications

•Ceiling fan - motor control and drive solutions

•Motor control and drives

•Residential air conditioning: Smart and efficient cooling
