Infineon IRS2108STRPBF

Infineon Half Bridge Driver, CMOS, LSTTL - IRS2108STRPBF

This is a high-voltage, high-speed power MOSFET and IGBT driver with dependent high and low-side referenced output channels. Its ruggedised monolithic construction is enabled by proprietary HVIC and latch immune CMOS technologies. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic.

Features & Benefits

• Synchronous operation ensures precise timing control for synchronous switching applications
• Fast switching speed with a rise time of 220 ns and fall time of 80 ns enables efficient power conversion
• Operates from 10 V to 20 V, accommodating various power supply configurations

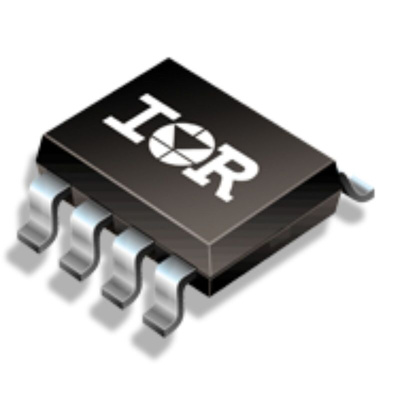

• The SOIC-8 package (5 mm length, 4 mm width, and 1.5 mm height) facilitates space-constrained designs
• Consumes only 1.6 mA of supply current

Applications

• Efficiently drive MOSFETs and IGBTs in motor control systems
• Enable reliable and precise voltage inversion
• LED lighting drivers help control LED brightness with precision

What is the maximum operating temperature for the IRS2108STRPBF?

The IRS2108STRPBF can operate at temperatures up to +125°C.

How many output channels does the IRS2108STRPBF have?

It has two output channels—one high-side and one low-side.

Is the IRS2108STRPBF compatible with 3.3 V logic?

Yes, the logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic.
