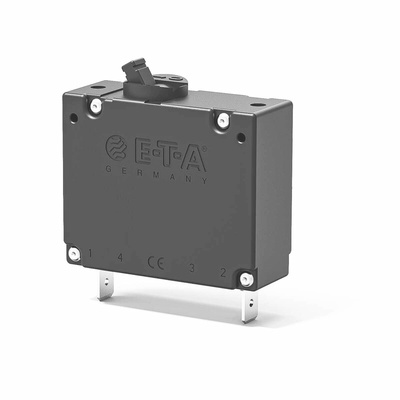

8340-F410-P1M1-A3H0-15A, ETA Thermal Circuit Breaker - 8340 Single Pole 80V dc Voltage Rating Flange Mount, 15A Current Rating, Автоматический выключатель

Panel Mounting Magnetic CBE, 8340 Series Circuit Breaker

Single pole magnetic hydraulic CBE with trip free snap action mechanism with toggle actuation.
Industry standard dimensions with medium delay for most applications.
Typically used on control equipment, communication systems, transportation (rail) and power supplies.
Can be used as DC curve circuit breaker up to 80 Vdc
IEC classification S/HM

Note

These CBE's are designed specifically for equipment/systems and should not be confused with large MCB's intended to protect distribution wiring against catastrophic faults.

Approvals

UL; CSA; VDE (EN60934); BV; QPL

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

8340-F ... Magnetic and Hydraulic Circuit Breaker Data Sheet

UL E67320 Sec 15

CSA LR16186-36

BUREAU VERITAS 06793/B0
