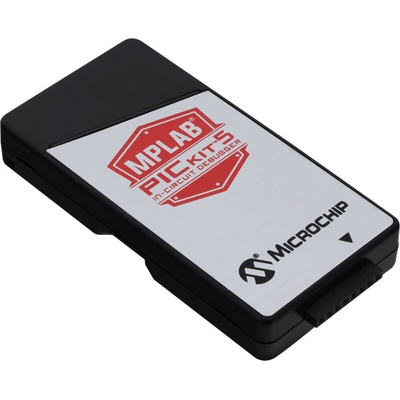

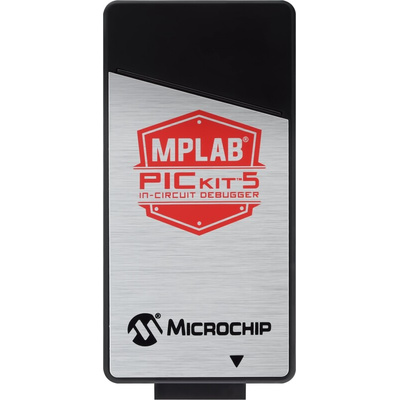

MPLAB® PICkit™ 5 In-Circuit Debugger

The MPLAB^® PICkit™ 5 in-circuit debugger/programmer enables quick prototyping and portable, production-ready programming for all Microchip devices, including PIC^® microcontrollers (MCUs) and dsPIC^® Digital Signal Controllers (DSCs), AVR^® and SAM devices and Arm^® Cortex^®-based microprocessors (MPUs). It works alongside the MPLAB X Integrated Development Environment (IDE) to provide a powerful and easy-to-use Graphical User Interface (GUI) for debugging and programing. Alternatively, the MPLAB PICkit 5 in-circuit debugger/programmer can be used stand-alone with the MPLAB Programmer-to-Go (PTG) mobile app, allowing you to connect to the tool from your smartphone via Bluetooth^®.

Note: The PICKit 5 is compatible with MPLAB X IDE version 6.10 and later.

• Improved Programmer-to-Go (PTG) support with the MPLAB PTG mobile app


• Connect wirelessly from your smartphone via Bluetooth^®


• Select from multiple saved program images on the SD Card


• Start programming from the app or by pressing on the logo


• Supply 150 mA to the target


• Option to be self-powered from the target (2.7V to 5V)


• Simplify your workspace


• USB Type-C^® connector and cable


• No external power needed when the device is powered by high-speed USB 2.0


• Use the eight-pin single in-line header


• Supports JTAG, SWD, UART VCP


• Adapter board allows use of standard connectors for JTAG, SWD, ICSP, and AVR Protocols


• Reduce Costs


• Features and performance at a fraction of the cost of comparable debuggers/programmers

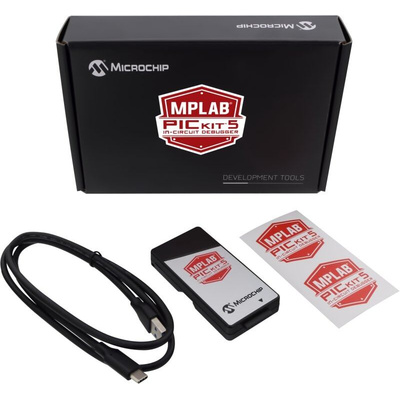

Package Contents

• MPLAB PICkit 5 In-Circuit Debugger/Programmer


• USB Type-A to USB Type-C cable


• Two MPLAB PICkit 5 In-Circuit Debugger/Programmer stickers

System Requirements

• Available USB 2.0 port


• Microsoft Windows^® 7 or later, macOS^®, or Linux^®


• MPLAB X IDE version 6.10 or later

Datasheet - PG164150
