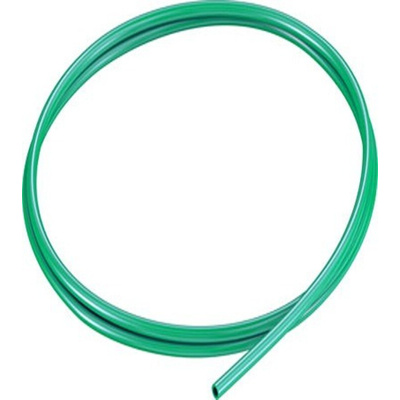

PUN-H-F-4X0,75-GN, Festo Green Round Plastic Tube x 4mm OD x 2.6mm ID

The Festo Plastic tubing is made from thermoplastic polyurethane material and available in green colour. This tubing has 4 mm outside diameter, 2.6 mm inside diameter and 16 mm flow relevant bending radius with 8 mm minimum bending radius. This plastic tubing is used for push in connector of 4 mm outer diameter and for barbed fitting I.D. 3 mm with union nut pneumatic connection. This tubing supports water and compressed air operating medium according to ISO 8573 1 2010.

RoHS compliant
UL94 HB fire test material
Suitable for energy chains
Clean room compatible combination

Datasheet - PUN-H-F-4X0,75-GN
