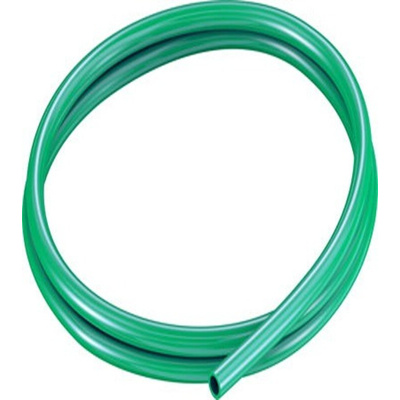

PUN-H-F-8X1,25-GN, Festo Green Round Plastic Tube x 8mm OD x 5.7mm ID

The Festo Plastic tubing is made from thermoplastic polyurethane material and available in green colour. This tubing has 8 mm outside diameter, 5.7 mm inside diameter and 37 mm flow relevant bending radius with 21 mm minimum bending radius. This plastic tubing is used for push in connector of 8 mm outer diameter and for barbed fitting I.D. 6 mm with union nut pneumatic connection. This tubing supports water and compressed air operating medium according to ISO 8573 1 2010.

RoHS compliant
UL94 HB fire test material
Suitable for energy chains
Clean room compatible combination

Datasheet - PUN-H-F-8X1,25-GN
