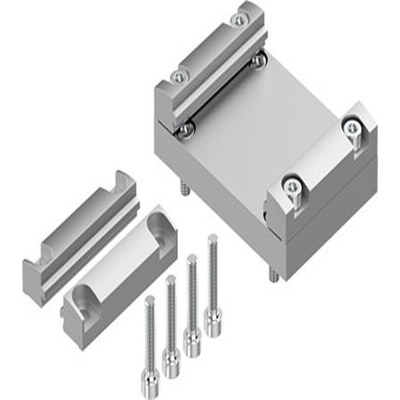

EHAA-D-L2-60-L2-60, Festo Connection Kit

The Festo Angle kit is made from anodised wrought aluminium alloy. This angle kit is used for axis to axis mounting with adapter plate. When motors are mounted using parallel kits, this may lead to interfering contours. In this case, the adapter plate is required for height compensation. It has base axis with same size or one size down assembly axis type mounting option. The net product weight is 205 g.

RoHS compliant
Low corrosion stress
VDMA24364 B2 L LABS conformity
Class 1 corrosion resistance CRC class

Datasheet - EHAA-D-L2-60-L2-60
