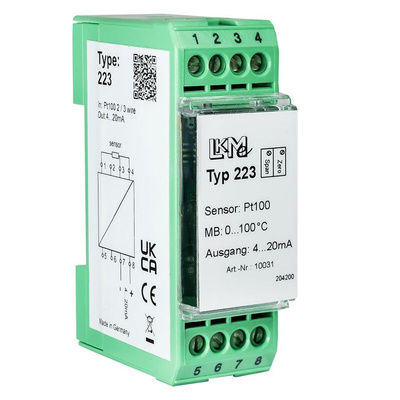

LKM223/6, LKMelectronic LKM Temperature Transmitter Pt100/Pt1000 Input

The LKMelectronic analog transmitter for Pt100, Pt1000 temperature sensors according to DIN EN 60751. Events for mounting on the 35mm DIN-rail. The output signal is highly accurate temperature linear. The transmitter is delivered from the factory calibrated to customer specifications. A span and zero controller allows subsequent fine adjustment. The influence of lead resistances is largely eliminated by the use of a 3 wire circuit. A larger distance between sensor and transmitter is therefore possible without loss of accuracy. If possible, all three leads should be of the same length and have the same cross-section.

Material polycarbonate
Clamping type screw terminals
