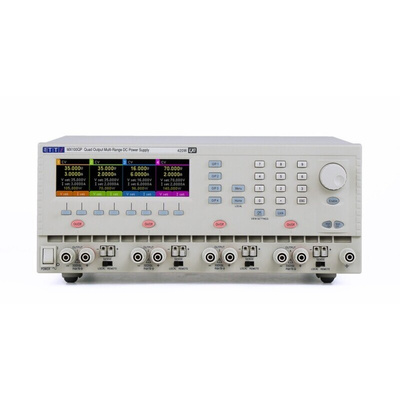

MX103QP S2, Aim-TTi MX Series Digital Bench Power Supply, 35V, 6A, 4-Output, 420W

The Aim-TTi DC power supply offers 4 outputs with full capabilities on all outputs Max 35V (SELV compliant) Max 6A, Simultaneous high resolution metering. defined output On/Off Sequencing. To protect the DUT the supply can be configured to user setable triplink. When a defined OCP or OTP trip level is exceeded on a defined output Triplink will trip the user selected outputs. All outputs are completely independent and isolated. Each outputs can be configured to track defined outputs.

Test bridge software
USB LAN LXi RS232. interfaces GPIB option
4 independent 105W full performance outputs
Linked output power share up to 210W
Multiple ranges on each output max 35V Max 6A SELV
Selectable current meter averaging
Switchable remote sense capability
TripLink
Duplicate power and sense terminals at rear

Note

Accessory
The GPIB option requires the GPIB-1A option 144-5481 to be purchased separately and installed by the customer.
