RS PRO 134mm Metric Depth Gauge, Steel, 47g

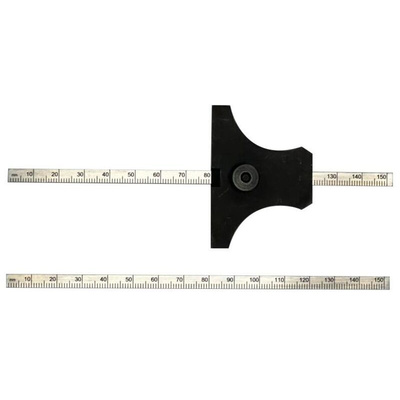

RS PRO 150 mm Metric Depth Gauge

Achieve accurate measurements with this RS PRO depth gauge. This handheld device is used to determine the depth of a particular feature or object. This depth gauge, specifically, utilises the metric system of measurement, which includes units like millimetres (mm) or centimetres (cm) to quantify depth.

Features and Benefits

• Analogue display type


• Metric


• Hardened steel material


• Maximum measurement of 150 mm


• Weight of 47 g

Specification

• Base measurement: 56 mm wide x 3.5 mm thick


• Top surface: 25 mm wide x 3.5 mm thick


• Blade width: 5.2 mm x 1mm


• Depth rule graduated both sides


• Front face graduated in 1mm steps


• Rear face graduated in 1mm steps


• Squareness accuracy of Rule to Base: 90˚ ±15 min

You May Also Need

• RS PRO 150 mm Imperial, Metric Depth Gauge – RS stock no: 274-1082

Applications

• Engineering


• Machining


• Woodworking

RS PRO Datasheet
