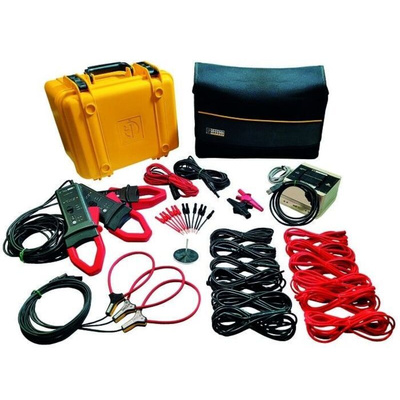

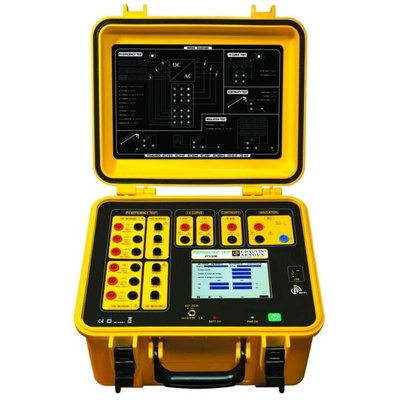

P01129600, Chauvin Arnoux 1% Photovoltaic Tester, Li-Ion Rechargeable Battery 3000A ac 1000V

The FTV500 PHOTOVOLTAIC TESTER is a device designed and manufactured to meet all the needs of technicians during installation, testing, commissioning, troubleshooting and maintenance of photovoltaic generators according to international standards.

Five measurements in 1 instrument :
Inverter efficiency: DC/AC efficiency test (DC/AC efficiency, PRP performance), simultaneously up to 3 strings
2- I-V curve (with quick check): Checking the I-V curve (on string, module or PV cell)
3- Continuity: Checking the low continuity resistance of the ground connections.
4- Off and on insulation: Insulation test with system in voltage mode (without the need to interrupt the power supply)
5- Data logger: DC/AC Logger function (short-term monitoring of all PV system values), simultaneously for up to 3 strings

- Management and direct report generation from the device
- Remote unit with wireless transmission (Irradiation/temperature) VNC for remote display and control sharing USB and Wi-Fi interfaces
- Touch screen display with anti-glare technology
- Compliance with international standards, It is designed to test and validate installations to IEC 62446.

Datasheet - P01129600

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
