GHG2632301R0007, Eaton GHG 262 Series Safety Limit Switch, NO/NC, IP66, 4P, Polyester Housing, 690V ac Max, 40A Max, Концевой выключатель

Eaton CEAG Crouse-Hinds Safety Limit Switches - GHG26 Series

The GHG26 range of limit switches from Eaton Crouse-Hinds is designed to reliably isolate the power supply on electrical installations during maintenance and repair. These safety switches have an integrated locking facility for up to 3 padlocks in the off position to protect against accidental switching. Designed for use in safety circuits, the limit switches are quickly installed, are flexible and safe whilst offering high reliability.

These limit switches are suitable for industrial automation and control applications in hazardous areas such as machine tools, hoists, material handling and conveyor systems.

Features and Benefits

• Versions in impact-resistant polyamide or glass-fibre-reinforced polyester enclosures provide a high degree of protection IP66 for limit switches up 180 A making these switches highly resistant to mechanical impact
• Rotating actuator knob
• Explosion protected limit switches with IEC 62262-1 class 1 & ATEX hazardous area certification
• Optionally supplied with snap-on moulded plastic or brass flanges fittings for easy mounting and installation
• Switch mounting plates are available separately

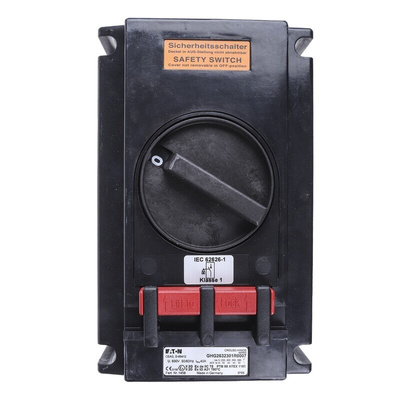

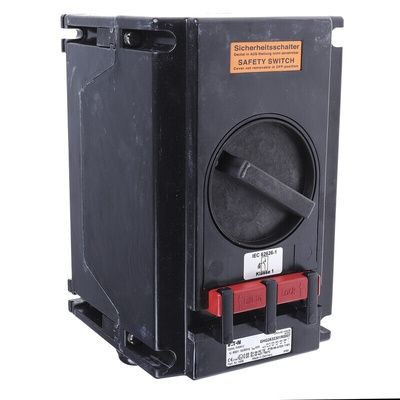

Eaton CEAG Crouse-Hinds Safety Limit Switch, 102mm Length, M25 - GHG26 Series - GHG2632301R0007

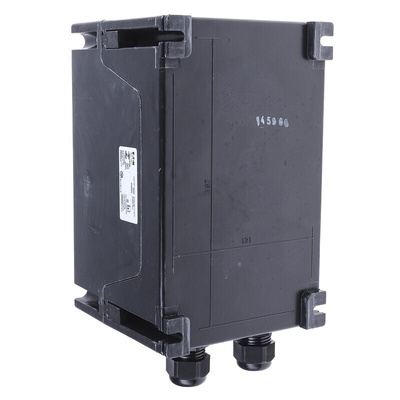

Use this safety limit switch from the CEAG Crouse-Hinds range to isolate power supply to electrical equipment during repair and maintenance. This component has a glass-fibre-reinforced polyester housing that's highly durable and heat-resistant. It's also safe for use in potentially explosive environments, making it a good choice for use in demanding industrial settings. This unit has two M25-sized cable entries for use with cables ranging in diameter from 5 to 13mm, making it a versatile option. As it can be locked in the 'off' position using a padlock, it's useful for dangerous industrial equipment where LOTO (lockout/tagout) procedures must be followed to ensure safety during maintenance.

Features & Benefits

• Voltage rating of 690V and current rating of 40A for use in high-power applications
• Compact dimensions of 102 (length) x 84 (width) x 112mm (depth) for space efficiency
• Broad operating temperature range of -20°C to +40°C for use in a variety of demanding environments

Can I use this limit switch in wet environments?

This limit switch has an IP66 (ingress protection) rating, indicating it can withstand dust and high-pressure water jets. This makes it a safe choice for use in damp or humid environments.

Note

Eaton formerly known as CEAG
