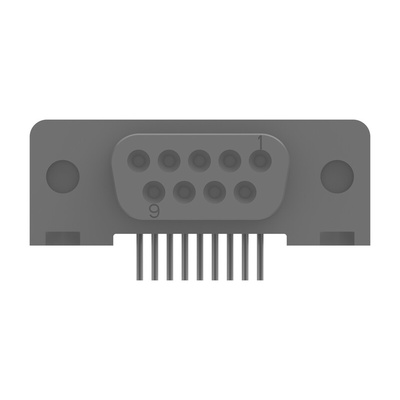

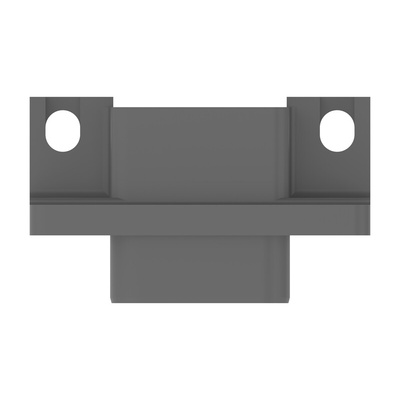

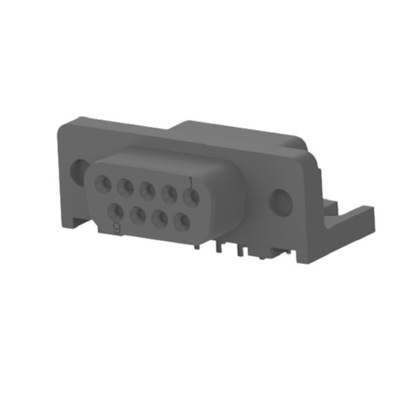

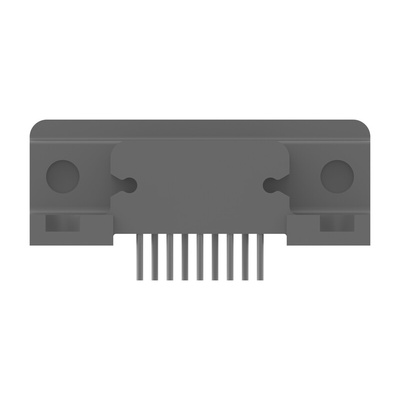

5745131-1, TE Connectivity 5745131 9 Way Right Angle Board Mount D-sub Connector Receptacle, 2.74mm Pitch

AMPLIMITE D-Sub Connector,HD-20 318 Mount Series, All Plastic, PCB Mount

AMPLIMITE HD-20 318 series right angle PCB mount All-Plastic d-sub socket connectors with an 8.08mm footprint (.318), 94V-0 rated black thermoplastic housings. These AMPLIMITE HD-20 318 series plastic PCB mount d-sub connectors are pre-loaded with size 20 DF posted phosphor bronze socket contacts.
Stock numbers 822-4771 and 822-4774 have tin plated copper alloy boardlocks and 0.00076 μm gold plating on contacts. 822-4771 has a zinc threaded insert and 822-4774 has a female screwlock.
Stock number 718-3654 has 3.18 board mounting holes and gold flash on contacts
Stock number 719-9097 has female screwlocks and 0.00076 μm gold plating on contacts
The recommended PCB thickness for these AMPLIMITE HD-20 All Plastic 318 mount d-sub connectors is 2.36mm

The TE Connectivity D Sub Connector is a printed circuit board mounted connector with receptacle type housing. This connector is available in standard profile.

Round shape contact
Vibration and shock tested
Right angle PCB mount orientation

TE Connectivity AMPLIMITE D-Subminiature Connectors
