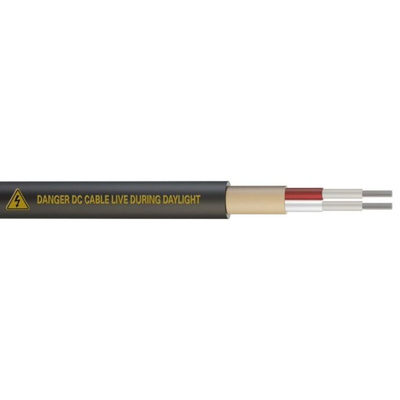

RS PRO 2 Core Power Cable, 4 mm², 50m Armoured, Black Polyvinyl Chloride PVC Sheath, Flexible Multicore, 52 A, 1000

2753848
Производитель: RS PRO
Цена за 1 катушку (50 метров)
208431.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 2 Core Power Cable

This range of RS PRO cable has been specially developed to meet the requirements of the DC interconnections between the solar panels and the other components of the photovoltaic system, such as the isolators and invertors. These cables have been designed with the highest quality and versatility in mind and are designed to operate at a normal maximum conductor temperature of 90°C but for a maximum of 20000 hours, a maximum conductor temperature of 120 °C at a maximum ambient temperature of 90°C is permitted.

Features and Benefits

  • Pre-marked LIVE DC warning message to improve safety

  • This cable can provide a quicker and neater install and installed using normal cable accessories, cleats and/or clips giving additional protection without the need for conduit installations

  • This power cable is safer as it can also remove the need for d.c. junction boxes in certain installations

  • Compatible with standard terminations and accessories such as cleats and MC4 connectors

Applications

This range of RS PRO cables are particularly suitable for use within photovoltaic systems and the PV-Ultra® offers excellent mechanical properties, which makes it suitable for both internal and external installations.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
Бронированность:
Да
Длина:
50м
Кабель - тип:
Flexible Multicore
Количество ядер:
2
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Луженая отожженая медь
Номинал тока:
52 A
Номинальное напряжение:
1000 → 1500 V
Площадь поперечного сечения:
4 мм²
Рабочая температура - максимальная:
+90°C
Рабочая температура - минимальная:
-15°C
Цвет оболочки:
Черный
