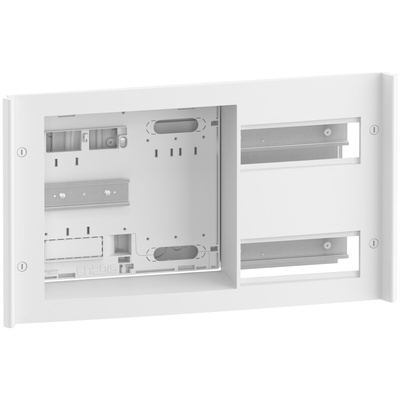

LVSXY724, Schneider Electric PrismaSeT Series Plastic Panel Kit for Use with Enclosure 24.0 Module, 535 x 315 x 118mm

The Schneider Electric Control Panel Kit is a single phase kit, configured for enclosures with 24 modules and a rated current of 90 A. It is intended for surface mounting and supports a single phase network. The enclosure accommodates 24 modules in two horizontal rows with 48 pitches of 9 mm each. Each row consists of 12 modules with a total of 24 modules for 18 mm each. The kit is compatible with CBE or LINKY energy meters and circuit breakers. It adheres to electrical insulation Class II standards and is constructed with techno plastic material.

Halogen free
RoHS compliant
Green Premium product
IP30 and IK08 degree of protection

Datasheet - LVSXY724
