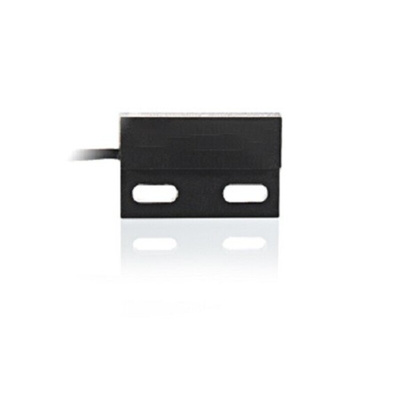

RS PRO Rectangular Magnetic Proximity Sensor, NO, 140V ac, 1.2A, IP67

RS PRO Miniature Flat Pack Magnetic Proximity Switch, 28.5 x 6.3mm

An accurate and reliable reed switch with a compact flatpack body measuring 28.5 x 6.3mm used for non-contact detection of magnetic fields. Robust and compact the magnetic proximity sensor is suitable for a wide range of non-contact applications including speed measurement, position and level control and flow detection.
A normally open Type A contact the magnetic reed switch is encapsulated within an epoxy compound for excellent vibration resistance and contained within a hardwearing, tough ABS case offering industrial protection to a IP67 level.
Intended for easy installation the non-contact switch terminates in AWG 20.4 mm stripped and tinned leads rated to UL 1007/1569 for use with internal wiring.

Features and Benefits

Flatpack magnetic reed switch
Type A contact (NO)
ABS housing
IP67
Dimensions of 28.5 x 6.3mm
AWG 20.4 x 500mm prewired leads

Applications

No contact sensing
Position control
Speed measurement (RPM)
Level sensing
Flow detection

For a suitable sensing magnet please see RS PRO 277-3632

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies.
Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price.
Making RS PRO your smart choice.

RS PRO Datasheet
