RS PRO Rectangular Magnetic Proximity Sensor, CO, 120V ac, 1.5A, IP67

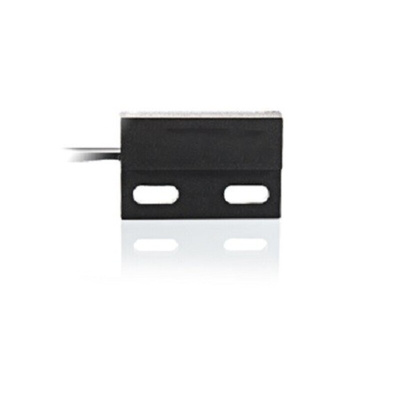

RS PRO Miniature Flat Pack Magnetic Proximity Switch, 28.5 x 6.3mm

An accurate and reliable reed switch with a compact flatpack body measuring 28.5 x 6.3mm used for non-contact detection of magnetic fields. Robust and compact the magnetic proximity sensor is suitable for a wide range of non-contact applications including speed measurement, position and level control and flow detection.
A normally open Type C contact the magnetic reed switch is encapsulated within an epoxy compound for excellent vibration resistance and contained within a hardwearing, tough ABS case offering industrial protection to a IP67 level.
Intended for easy installation the non-contact switch terminates in AWG 22.4 mm stripped and tinned leads rated to UL 1061 for use with internal wiring.

Features and Benefits

Flatpack magnetic reed switch
Type C contact (Changeover)
PA GF (Polyamide Glass Fibre) housing
IP67
Dimensions of 28.5 x 6.3mm
AWG 22.4 x 500mm prewired leads

Applications

No contact sensing
Position control
Speed measurement (RPM)
Level sensing
Flow detection

For a suitable sensing magnet please see RS PRO 277-3632
