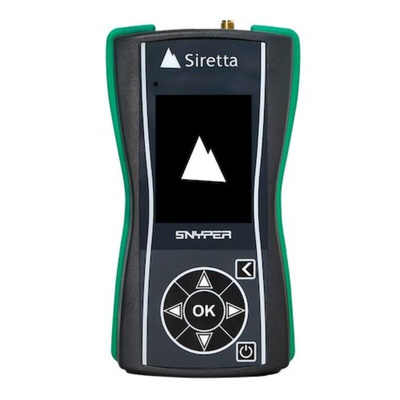

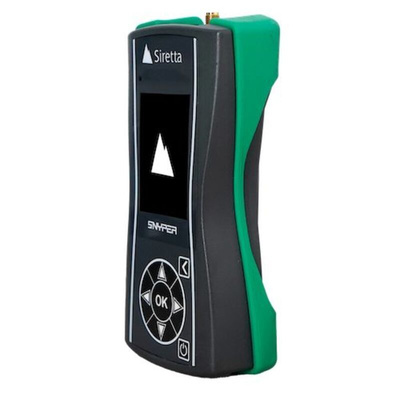

Siretta SNYPER-IOT GRAPHYTE (GL) RF Detector 2100MHz

SIM Free - Continuous Survey CAT-M NB-IoT Logger (GL)

The SNYPER-IoT Graphyte (GL) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the LTE-Cat M, NB-IoT & 2G/GSM networks.

The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Four types of survey can be performed: a “FULL” survey (CAT-M, NB-IoT, GSM combined), or a single selected technology only.

SNYPER-IoT Graphyte (GL) can save a limitless amount of surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys. The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).

The SNYPER-IoT Graphyte (GL) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording

The SNYPER-IoT Graphyte (GL) is an invaluable tool for understanding local network performance over hours, days and weeks to assist in the selection of reliable mobile network operators before cellular installations.

Features

•Enhanced cellular surveying & sequential logging of new and existing installations on Cat M, NB-IoT and 2G networks
•User selectable survey logging options to determine most suitable & reliable mobile operator
•Evaluate “preferred” MNO’s performance over time
•Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
•Results are reported in CSV, graphical HTML format & Print to PDF
•Save 1000’s of logged surveys with multiple liveSCAN logs

Physical Interfaces

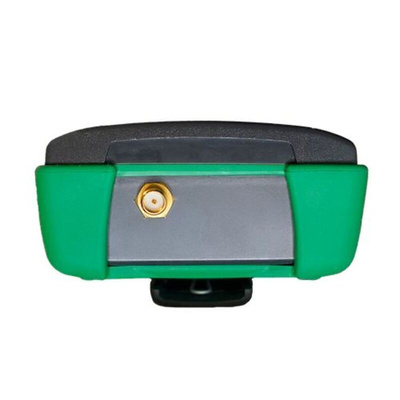

1 x SMA Female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
1 x Red LED charging indicator
1 x 2.4” Diagonal VGA 480 x 640 RGB TFT
Display: 80 degree viewing angle
Display Brightness: 700md/m2
1 x Tactile multifunction keypad

Supplied Accessories

2m USB-C 2.0 for PC interface and for battery charging
Male USB-A to Female USB-C adaptor
Mini Tripod

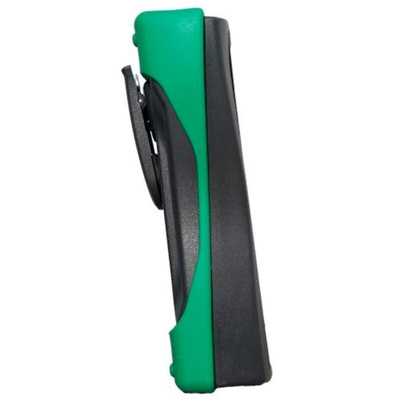

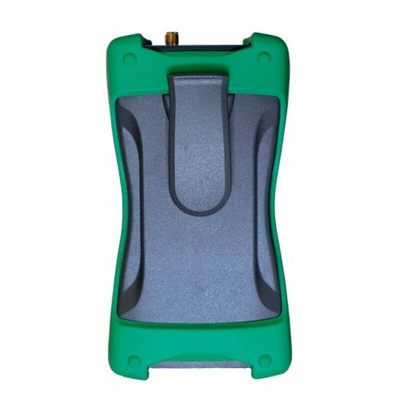

Belt Clip Mounting Adaptor for Mini Tripod
LiveSCAN Antenna
1.5m LiveSCAN Low Loss cable
