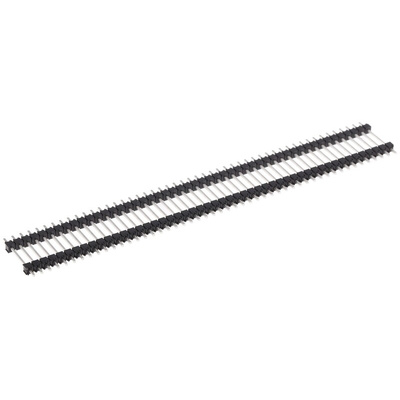

DW-50-10-T-S-600, Samtec DW Series Straight Through Hole Pin Header, 50 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Samtec Pin Header, 3A Current Rating, Board-to-Board Connector System - DW Series - DW-50-10-T-S-600

Connect your PCBs in a snap using this pin header from Samtec. Its single-row design contains 50 metallic contact pins for up to 50 connections. You can solder these pins onto your circuit board for a secure link that doesn't come loose, even in the event of heavy vibrations. The header's vertical orientation means you can stack PCBs on top of one another to create your own board-to-board system, making it a cinch to customise your setup. The tin-plated phosphor bronze contacts are highly conductive and resistant to corrosion to keep electricity flowing smoothly for optimal data transfer.

Features & Benefits

• Current rating of 3A for use in low-power equipment
• Unshrouded design enhances design flexibility, as no extra casing gets in the way
• Suitable for use in harsh environments, thanks to a wide operating temperature range of -55°C to +105°C

Applications

• Computer manufacturing
• Satellite navigation systems
• Telecommunications

What's the distance between each pin on this header?

This header has a compact pitch of 2.54mm, so it's a good choice for PCBs with limited space.

2.54mm Board to Board and Wire to Board - Samtec

Datasheet

Line Drawing - DW-50-10-T-S-600
