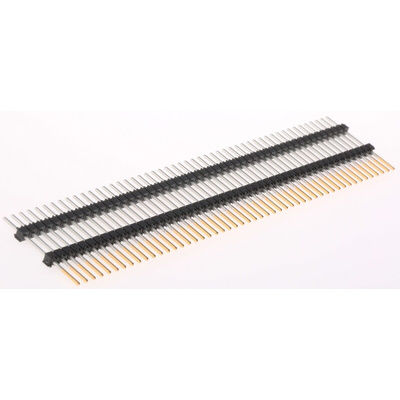

EW5012LS500, Samtec EW Series Straight Through Hole Pin Header, 50 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

EW Series 2.54mm Through Hole Board Stackers

Single row
2 stacker heights (distance between boards) available
Supplied in bags containing 4 board stackers
Contact material: Phosphor Bronze
Plating: gold contact (longest tail), remainder tin
Accepts 0.64mm square pins for board to board applications

Samtec Pin Header, Board-to-Board Connector System, Gold-Plated Contacts - EW Series - EW5012LS500

Securely link your PCBs in a flash using this pin header from Samtec. It has a single row of 50 metallic contact pins to create a connection between your board and a second PCB or female socket. Data flows smoothly between the connecting pins, as they're made from highly conductive and corrosion-resistant gold-plated phosphor bronze. A 3A current rating makes this component safe for use in low-power installations. You can install this unit in a jiffy using through-hole mounting.

Features & Benefits

• Unshrouded construction means there's no extra casing to deal with
• Pitch of 2.54mm for broad compatibility with standard PCB setups
• Glass-filled polyester insulation is resistant to heat and wear
• Performs reliably in challenging conditions, thanks to a wide operating temperature range between -65°C and +125°C

Applications

• Telecommunications
• Electronics manufacturing
• Satellite navigation systems

What's this pin header's orientation?

The header is vertically oriented, which means it allows you to stack PCBs on top of one another to create a board-to-board system.

What size are the pins?

The tail pin length is 8.38mm and the mating pin length is 5.08mm, making this header a compact choice for crowded boards.

2.54mm Board to Board and Wire to Board - Samtec

Connector,PCB,50way 2.54mm pitch PCB stacker,overall length Drawing

Connector,PCB,50way 2.54mm pitch PCB stacker, PCB Layout Info

Connector,PCB,50way 2.54mm pitch PCB stacker,overall length Drawing & Part Number Decode
