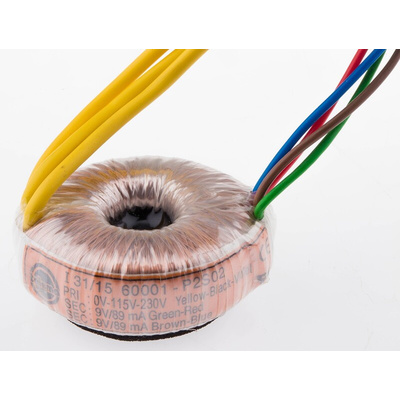

60001, Nuvotem Talema 115 V ac, 230 V ac, 2 x 9V ac Toroidal Transformer, 1.6VA 2 Output, Трансформатор

Toroidal, Mini Open Style Transformers with Leads 115/230Vac, 60000 Series

High quality open style toroidal transformers with a 0-115/230Va.c. 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.

Dual standard tapped primary 115/230Vac
Low profile-small size-lightweight
Potted centre with M4 fixing hole
Low level of radiated magnetic field
Very low induced noise (hum)
Double insulated primary leads
100% electrical and flash tested
High quality manufacturing and testing in accordance to EN61558,EN60950,EN60065, VDE0551,VDE0550,BS415

Standards

UL506, EN61558

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

UL recognised, ENEC05

Approvals

UL 506; ENG1558

Standards

EN61558; EN60950; EN60065; VDE 0551; VDE 0550; BS415

60000 Thru 05(-P2S2) Series Transformer, Toroidal, 1.6VA, Data Sheet

6000 6085 Series Toroidal Transformers Letter Of Conformance
