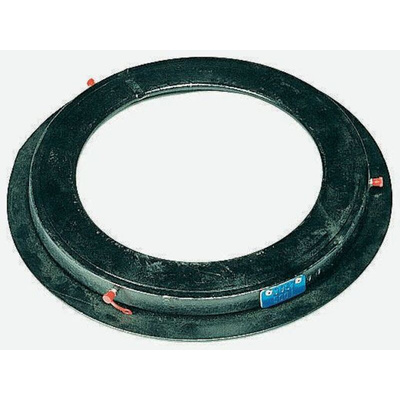

RS PRO Heavy Duty Conveyor Turntable, 500mm, 9kN Load Capacity

RS PRO Heavy Duty Conveyor Turntable, 500 mm Diameter, 9 kN Load Capacity

The RS PRO heavy-duty conveyor turntable is a swivel-style attachment you can fix onto agricultural vehicles and trailers. The part is designed to control the turntable's rotational motion and reduce friction between moving parts.

The component is modular and connects the trailer chassis to the A-frame, allowing for a smooth rotating motion that helps with navigating bends or corners. The turntable is made from heavy-duty steel, so it's more than strong enough for rugged commercial uses and demanding jobs. Installing the fitting is simple because all you need to do is bolt the turntable's lower ring to the A-frame and the upper ring connects to the chassis.

You can use the turntable with a maximum load of 9 kN and it's supplied undrilled. Be aware that bolts aren't sold with the part, so you'll need to purchase eight M10 or M12 diameter bolts.

Features and Benefits

• Heavy-duty conveyor turntable constructed from steel
• Easy to assemble
• Fitted with precision ball bearings
• Supplied undrilled
• Load capability of 9 kN
• Diameter of 500 mm
• Compliance with TÜV (Technical Inspection Association) Safety Regulations and Motor Vehicle Safety Standards (StVZO) is required in Germany

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
