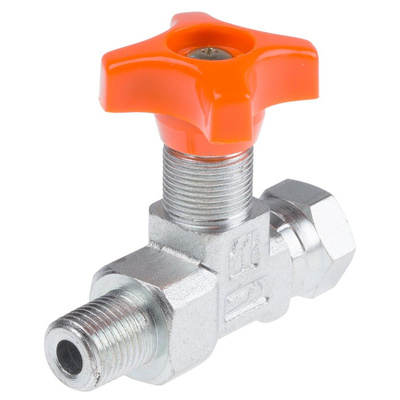

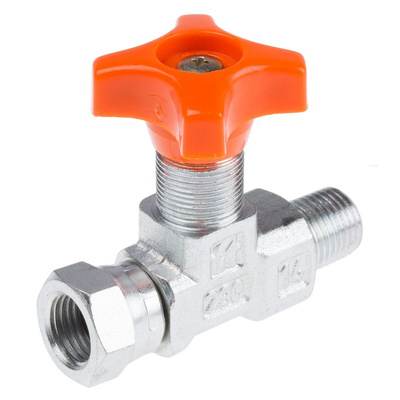

RS PRO Hydraulic Pressure Gauge Isolation Valve, G 1/4 Male

This valve from RS PRO provides an easy way to isolate a section of your piping. It's designed to be placed between the main fluid system and a pressure gauge in order to protect the gauge from the shock of pressurisation when the main system is filled. The valve can be easily opened or closed by hand and is designed to allow the output connector to swivel, ensuring that the attached gauge can be adjusted for easy reading.
The 400 bar maximum pressure rating ensures that the valve is suitable for use in industrial applications and the 1/4 inch "G" thread means that it will be compatible with existing equipment. This valve should simply slot in between the existing gauge and pipework with no additional parts required for fitting.

Features and Benefits

• Carbon steel body material
• G 1/4 Male connection port thread
• Maximum operating pressure of 400 bar
• Operating temperature range of -20°C to +100°C
• In-line orientation
• Thread diameter of 1/4 in
• Male thread gender
• G thread standard
