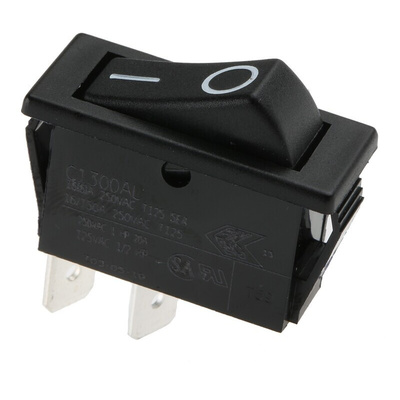

C1300ALAAA, Arcolectric (Bulgin) Ltd SPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

1300 Series High Inrush

A range of high inrush non-illuminated rocker switches designed for panel mounting. With a choice of single pole or double pole switch operation, these robustly made latching switches are suitable for a wide variety of applications. The on-off snap-in rocker switches feature silver contacts with positive break switching action. The 1300 series high inrush switches are suitable for Class II equipment. These ac mains rated switches are robust making them ideal for repair, maintenance and also new designs.

Features and benefits

• Moulded in Nylon 6.6 plastic
• Snap-in plastic prongs on the switch sides for secure panel retention
• Connection via quick connect push terminals 0.250” (6.35 mm)
• Easy to operate the smooth rocker actuator with I/O marking
• An option of SPST and DPST switch configurations
• Standard 30 x 22 mm or 30 x 11 mm panel cut out

Typical applications for rocker switches

Rocker switches are one of the most commonly used electrical switches used in the market today. Due to the switches simple design and the easy operation, rocker switches are found in almost every industry. Some of the most popular areas are:

• Power Supplies
• Workshop machinery
• Computers and peripherals
• Security equipment
• Automation control

FAQ

• Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear, so the connection is easy. Simply select the appropriate red, yellow or blue female push on receptacle connectors according to wire size required.

Approvals

ENEC, UL recognised component, CSA certified

Approvals

ENEC, UL recognised component, CSA certified

UL RECOGNISED E45221

C1300 Series Rocker Switches

CSA LR10990-41

C1300ALAAA Datasheet
