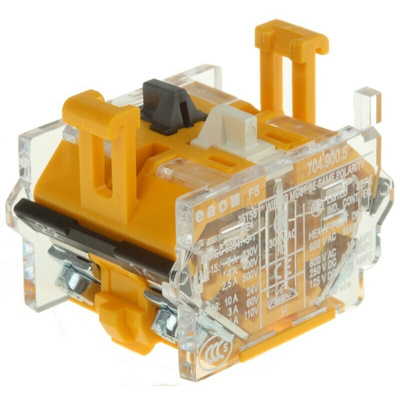

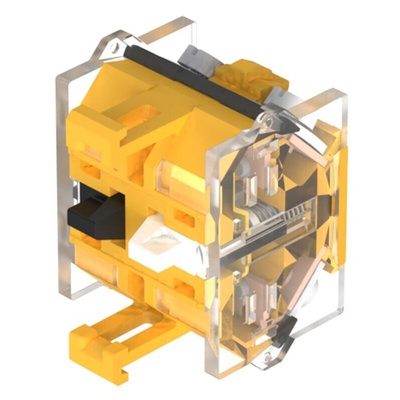

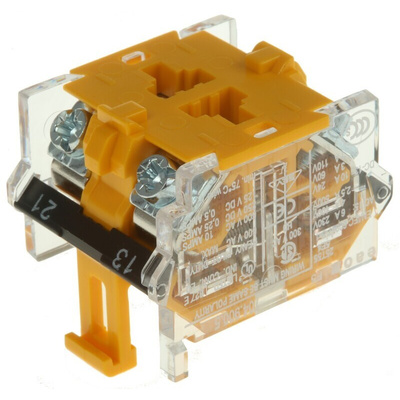

704.900.5, EAO Contact Block for Use with 04 Series, 500V ac, 1CO, Контактный блок

Contact units 10A - series 04

These contact blocks have been designed specifically for clipping onto the o4 series switch bodies. A variety of contact configurations are available making it possible to use this series in various potential applications.

Snap Action
Silver self-cleaning contacts
Various contact configirations avaliable

Approvals

SEV, UL, CSA, NEMKO, VDE

EAO Contact Unit, Snap-Action Contacts, 10A Current Rating - 04 Series - 704.900.5

Use this contact unit from EAO for the reliable operation of your HMI controls. This versatile component is compatible with items such as push button heads, indicators, key switches and selectors in the 04 series for ease of assembly. The product features silver contacts for high conductivity and resistance to corrosion, giving you a reliable connection. Thanks to its NO/NC configuration, you can use this switch for dual-option functions such as on/off switching.

Features & Benefits

• Broad operating temperature range between -25°C and +55°C for use in demanding environments
• Snap-action mechanism for rapid switching
• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Voltage rating of 500V AC for use in high-power systems

Applications

• Transportation industry
• Manufacturing facilities
• Construction equipment

How many switching elements can be snapped to each actuator?

For versatility, you can attach up to three switching elements to each actuator to fully customise your system.

How do I wire this contact unit?

This contact unit has screw terminals for simple and secure wiring without the need for any specialised tools.

EAO Series 04 Data Sheet

Datasheet

Datasheet - 704.900.5
