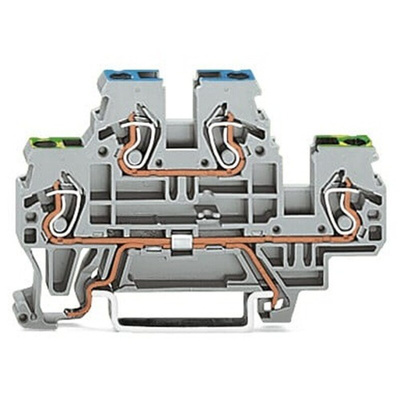

870-517, Wago 870 Series Grey Terminal Block, 2.5mm², 2-Level, Cage Clamp Termination

The Wago Double deck terminal block designed for ground conductors and through connections. This terminal block features blue conductor entry on the upper deck. It is designed for DIN rails of dimensions 35 x 15 and 35 x 7.5 and utilizes CAGE CLAMP connection technology. The actuation type is via an operating tool. It can accommodate a variety of conductor materials, including copper, with solid conductors ranging from 0.08 to 2.5 mm² and fine stranded conductors from 0.08 to 4 mm². It can also handle fine stranded conductors with insulated ferrules of 0.08 to 1.5 mm².

RoHS compliant
V0 flammability class per UL94

Datasheet - 870-517
