LA4KC1B, Schneider Electric TeSys K Surge Suppressor for use with TeSys K Series

Schneider Electric Surge Suppressor, Front Mounting, 2UC Maximum Peak Voltage - TeSys Series - LA4KC1B

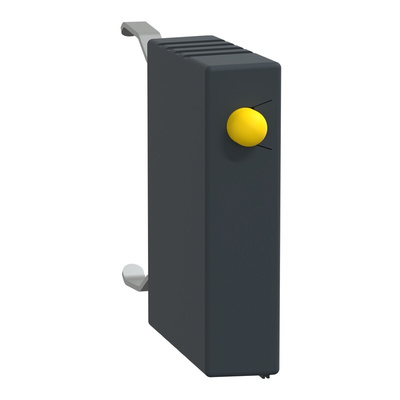

To stop overvoltages tripping up your circuitry, grab this surge suppressor from Schneider Electric. It's a versatile option made for use with LC1K and LP1K contactors in 12 to 24V DC control circuits. Monitoring is done in a flash thanks to an LED that keeps you up to speed with the status of your process. As you just clip this unit to the front of a contactor to add it to your system, there's no need to reach for your toolkit.

Features & Benefits

• Compact dimensions of 26 (H) x 6 (W) x 22mm (D) make it space-efficient
• Light 0.01kg weight doesn't add excess load to your setup
• Broad operating temperature range between -25°C and +50°C for use in harsh industrial conditions

Applications

• Bottling plants
• Consumer-goods manufacturing
• Construction industry

Which products are compatible with this surge suppressor?

It pairs seamlessly with products from the TeSys K Series from Schneider Electric.

What does the unit's bidirectional peak limiting diode do?

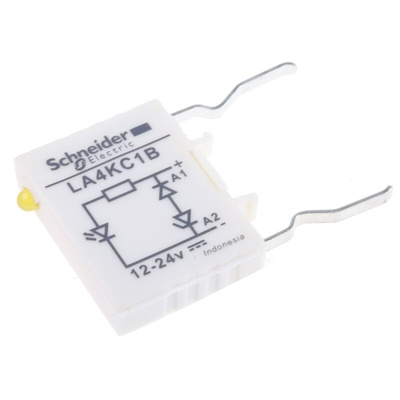

The bidirectional peak limiting diode offers protection by limiting potentially damaging transient voltage to a maximum of 2UC, without affecting coil opening time.
