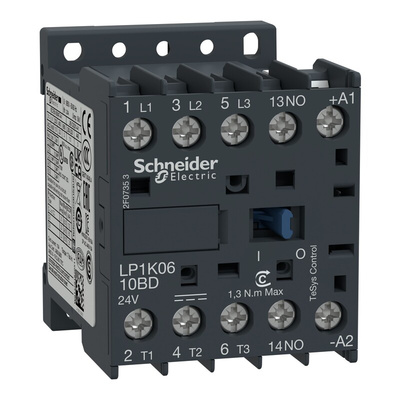

LP1K0610BD, Schneider Electric LP1K Series Contactor, 24 V dc Coil, 3-Pole, 6 A, 2.2 kW, 3NO, 690 V ac, Контактор

Schneider Electric LP1K TeSys K Miniature Contactors

TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP1K range are DC operated contactors recommended for use in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Coil with rectifier incorporated
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Are the TeSys K contactors suitable for applications in AC4 usage?

The LP1K series is suitable up to a maximum of 440 V ac in category AC4.

Is the TeSys K range a double break pole type contactor?

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, Screw Terminals, 690V AC Contact Voltage Rating - TeSys K Series - LP1K0610BD

Show your motor who's boss with this contactor from Schneider Electric's TeSys K range. It's suitable for rapidly stopping and starting machines, so you can plug and jog your motors instead of letting them run wild. As it works with applications up to 690V AC and operates at 3,600 cycles per hour, you can power equipment such as conveyors and lifts in a safe yet speedy way. Dimensions of 58 (L) x 45 (W) x 57mm (D) mean you'll have no trouble squeezing this compact contactor into an existing system.

Features & Benefits

• Screw terminals achieve a reliable connection
• Power rating of 2.2kW keeps energy consumption low
• Mechanical lifespan of 10,000,000 cycles means it's durable and long-lasting
• Flame-retardant materials to help safeguard your electrical installations from fire damage

Applications

• Production lines
• Food production
• Industrial cooling systems

How do I mount this contactor?

This versatile contactor can be clipped onto a DIN rail or mounted on a panel using the frame's fixing points.

Does this contactor have an auxiliary contact?

Yes, this contactor has an instantaneous NO auxiliary contact built-in, ready for your choice of signalling application.

Approvals

CSA, UL.

Standards

VDE 0660, BS 5424, NF C 63-110, IEC 60947.
